Take a moment to look at the plastic products around you: your computer mouse, the cap on your water bottle, the dashboard in your car, or a LEGO brick. They were almost certainly made using injection molding. Why has this single manufacturing process so thoroughly dominated the world of plastics for decades?
The primary advantages of injection molding are its unparalleled speed, extremely low cost per part at high volumes, and exceptional repeatability. Its main disadvantages are the significant upfront tooling cost and the long lead time required to design and manufacture the custom steel mold. This makes the process highly inflexible and cost-prohibitive for low-volume production or prototypes.
Is it the right choice for your project? This guide will go beyond a simple pros-and-cons list. We will provide a clear decision-making framework to help you determine *when* to invest in injection molding. More importantly, we'll show you how to strategically manage its "disadvantages" to ensure your project moves from prototype to mass production smoothly and successfully.
Injection molding offers unmatched advantages for mass production, including incredible speed (seconds per part), extremely low cost per piece, and the ability to produce millions of identical parts with high precision. It also provides the widest possible selection of materials, colors, and finishes, all from a single automated process.
For any company looking to scale production, the benefits of injection molding are transformative. Let's break down the five most significant advantages.
The number one reason for injection molding's dominance is its incredible speed. Once the steel mold is finalized and mounted in the machine, the manufacturing process is extremely fast.
This entire cycle time—injecting plastic, cooling the part, opening the mold, and ejecting—can take as little as 15 to 60 seconds. A single mold can produce thousands or even tens of thousands of parts per day, 24/7. This high-speed output is simply impossible to achieve with other processes like CNC machining or 3D printing, making it the only viable option for true mass production.
While the initial mold cost is high, the cost per individual part is exceptionally low. This is a classic example of economies of scale. The high tooling cost is a one-time, fixed expense. When you spread that cost over 100,000 or 1,000,000 parts, the tooling cost per part becomes fractions of a penny.
Several factors contribute to this low unit cost:
High Automation: The process is almost entirely automated, so direct labor costs are minimal.
Low Material Waste: Cold runner systems can be reground and reused. Hot runner systems (which we'll cover later) produce almost no waste at all.
Fast Cycles: As mentioned in Advantage 1, speed is high, meaning machine time per part is very low.
Injection molding is a highly precise and repeatable process. The hardened steel mold acts as a perfect, unchanging template. Once the molding machine parameters (temperature, pressure, time) are dialed in, every single part that comes out of the mold is virtually identical to the one before it.
This high repeatability is absolutely critical for industries where tight tolerances are non-negotiable, such as:

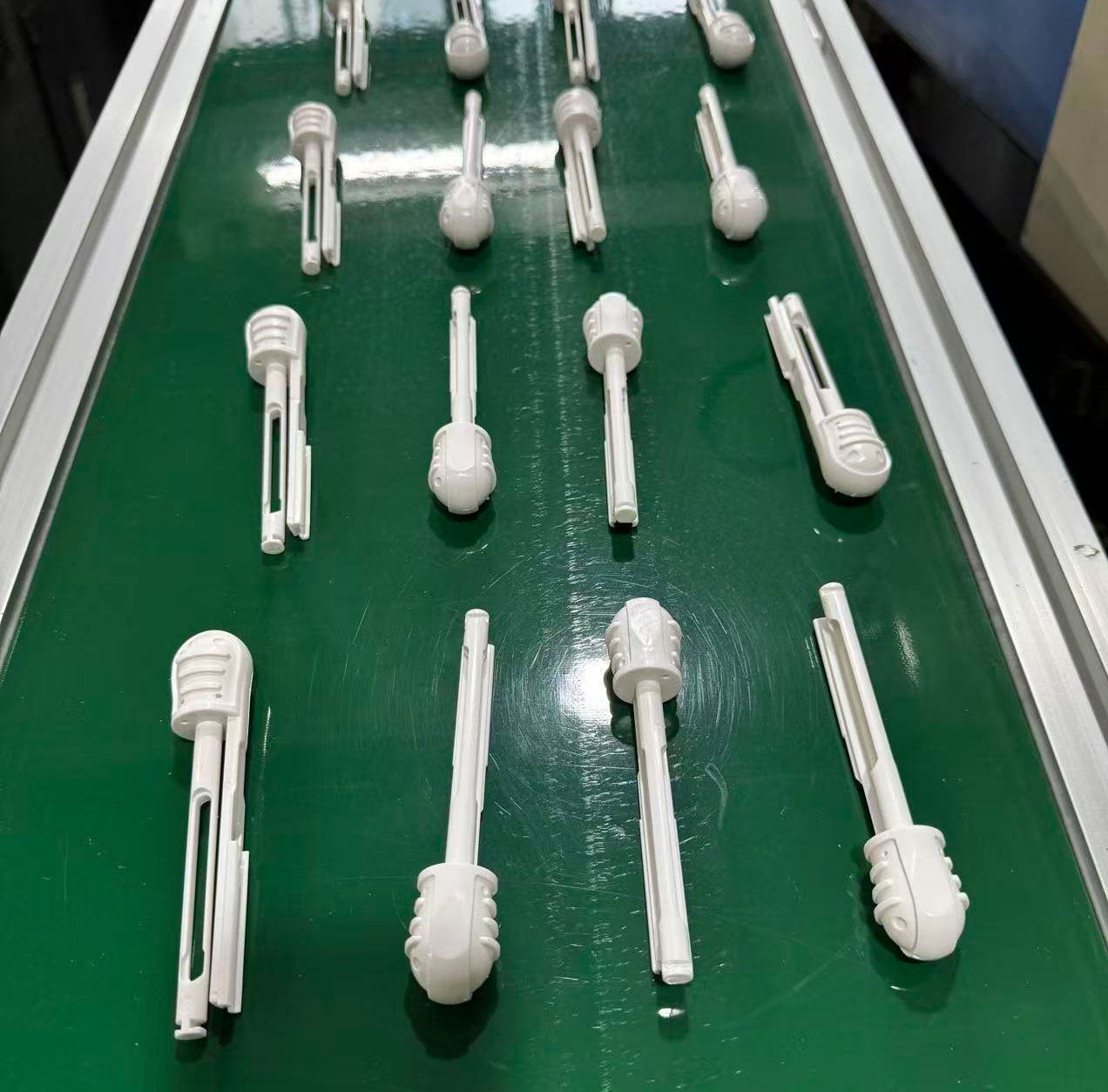

Medical Devices: Where components in a diagnostic tool or surgical device must fit together perfectly every time.
Automotive: For interior snaps, clips, and enclosures that must align flawlessly across the assembly line.
Electronics: For complex housings where circuit boards and buttons must fit with exacting precision.
Injection molding gives you access to a massive library of thousands of different thermoplastics. This allows you to precisely match the material to your part's specific mechanical and cosmetic needs.
Your options range from:
Commodity Plastics: Cost-effective materials like Polypropylene (PP), Polyethylene (PE), and Polystyrene (PS).
Engineering Plastics: Versatile performers like ABS, Polycarbonate (PC), and Nylon (PA).
High-Performance Plastics: Advanced polymers for extreme heat or chemical resistance, like PEEK and PEI (Ultem).
Furthermore, these base resins can be blended with additives to enhance properties or achieve any color. You can add colorants for perfect branding, glass fibers for added strength, UV stabilizers for outdoor use, or flame retardants to meet safety standards.
The high pressures of injection molding allow plastic to be forced into every tiny detail of a mold. This makes it possible to produce highly complex parts with intricate features in a single operation. Features that would be extremely difficult or expensive to create with CNC machining can be molded in seconds.
This includes:
Structural Ribs: Adding strength to a part without increasing its wall thickness.
Mounting Bosses: For easily adding screws and fasteners.
Snap-Fit Clips: For enclosures that snap together without any hardware.
Undercuts: Using slides and lifters (which we covered in our mold structure guide), even complex side holes and clips can be molded automatically.
The most significant disadvantages are the high initial investment in mold tooling, which can cost thousands to tens of thousands of dollars, and the long lead time (weeks or months) to design and manufacture that tool. It is also inflexible, as design changes after the tool is cut are extremely costly.
While the advantages are powerful, they come at a price. Understanding the "cons" is essential for proper project planning and budgeting. Ignoring them can lead to costly surprises and delays.
This is the biggest hurdle for most projects. A high-quality, production-ready mold is not cheap. Costs can range from $5,000 for a simple, single-cavity mold to over $100,000 for a large, complex mold with multiple cavities and actions.
Why the high cost?
High-Quality Materials: Molds are made from hardened tool steel (like P20 or H13) that can withstand millions of cycles of high pressure and temperature.
Precision Machining: The core and cavity are machined to extremely tight tolerances using advanced CNC and EDM processes.
Skilled Labor: Expert mold designers, toolmakers, and polishers spend hundreds of hours designing, building, and assembling the complex systems inside.
This high initial investment makes injection molding completely uneconomical for prototypes or low-volume production runs of just a few hundred parts.
You cannot get molded parts next week. The process of creating the mold is lengthy and meticulous. A typical mold-making timeline looks like this:
DFM Analysis & Final Design (1-2 weeks): Finalizing the part design for manufacturability.
Mold Design (1-2 weeks): Engineers design the complex mold tool itself.

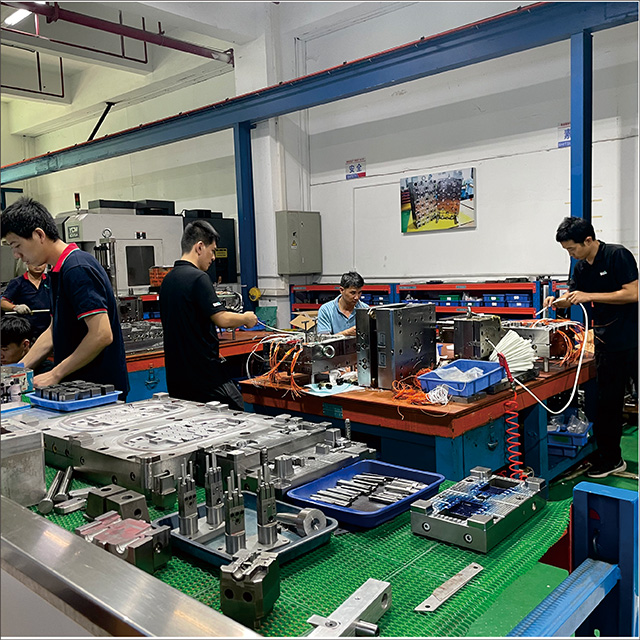

Mold Machining & Assembly (4-10 weeks): The steel is cut, polished, and all components (ejectors, slides, etc.) are assembled.
T1 Sampling & Tweaking (1-2 weeks): The first parts are molded (T1 samples) and inspected. Minor adjustments are made to the mold.
This entire process can take anywhere from **6 to 16 weeks** before you have production-ready parts. This long lead time must be factored into your project schedule.
Injection molding is not as forgiving as 3D printing. A part *must* be designed according to the rules of injection molding, or it will fail. These rules, known as Design for Manufacturability (DFM), are not optional.
Key constraints include:
Draft Angles: All walls parallel to the mold opening must be tapered (drafted) so the part can be ejected without scraping.
Uniform Wall Thickness: Walls should be as uniform as possible. Thick sections cool slowly, causing defects like sink marks and warping.
Undercuts: Features like side holes or clips require complex, expensive mechanisms (slides or lifters) to mold. They should be avoided unless absolutely necessary.
A mold is a block of hardened steel. Once it's cut, making changes is extremely difficult and expensive. There's a core principle in toolmaking: "It's easy to remove steel, but it's impossible to add it back."
If you need to make a feature smaller, the toolmaker can often machine away more steel. But if you need to make a feature *larger* (or move a hole), the toolmaker must weld new steel into the mold and re-machine it. This is a costly, time-consuming repair that can compromise the mold's integrity. This is why your design *must* be finalized before mold making begins.
The risks of injection molding are best mitigated by using rapid prototyping services (like 3D printing or CNC machining) to validate a design *before* committing to expensive tooling. Expert DFM analysis further reduces risk by ensuring the part is optimized for manufacturing, preventing costly errors.
The "cons" of injection molding are significant, but they are not unavoidable roadblocks. They are known risks that can be strategically managed with smart planning and the right manufacturing partner. Here is how you can de-risk your project.
The single biggest mistake is investing in a $50,000 mold for a design that hasn't been physically tested. The solution is to use low-cost, high-speed prototyping to get real parts in your hands first.
At GoodTech, our Rapid Prototyping services like 3D printing (SLA/SLS) and CNC machining act as your project's insurance policy. For a tiny fraction of the cost of a mold, you can have a physical prototype in a matter of days. You can test its form, fit, and function, catch design flaws, and make revisions. Once you have a prototype you are 100% confident in, *then* you can confidently invest in production tooling.
What if you only need 100, 500, or even 1,000 parts? At this volume, the mold cost is rarely justifiable. The answer is not to abandon your project, but to use a different process.
Our CNC machining service is the perfect bridge to mass production. We can machine your parts directly from a solid block of the final production plastic (like ABS, PC, or Nylon). This approach has zero tooling cost and a lead time of days, not months. It's the ideal, cost-effective solution for low-volume production, allowing you to get to market faster while you gauge demand before scaling to injection molding.
Many design-related problems can be caught before a single piece of steel is cut. This is done through a Design for Manufacturability (DFM) analysis. A DFM review is a collaborative process where our experienced molding engineers review your part design and identify potential issues.
A GoodTech DFM review will:
Identify and suggest improvements for insufficient draft angles.
Pinpoint thick sections that will cause sink marks or warping.
Propose design changes to simplify or eliminate costly undercuts.
Recommend the best gate location for cosmetic appearance and part strength.
This single step is the most effective way to reduce risk, prevent costly mold rework, and ensure your part is optimized for a smooth, efficient production run.
For projects that need 1,000 to 10,000 parts, there is a middle-ground solution. Bridge tooling (also called "soft tooling") involves creating the mold from a softer, easier-to-machine material like aluminum instead of hardened steel.
Aluminum molds are significantly faster and cheaper to produce than steel molds. They won't last for a million cycles, but they are perfect for this mid-volume range, "bridging" the gap between prototyping and full-scale steel tooling.
Injection molding is the right choice when your production volume is high (typically 10,000+ units), your part design is stable and finalized, and your primary goal is achieving the lowest possible cost per part. It is the wrong choice for early-stage prototypes or very low-volume runs.
So, how do you know if your project has crossed the threshold? Ask these three key questions.
This is the most important factor. You can calculate a rough break-even point. Imagine a CNC machined part costs $50, while the molded part costs $1. The mold itself costs $10,000. In this case, your break-even point is just over 200 parts. If you plan to make 10,000 units, the choice is obvious. If you only need 100, CNC machining is the clear winner. Generally, if your volume is under 1,000-5,000 parts, prototyping or bridge tooling is a better fit.
As we've established, changing a steel mold is expensive and difficult. You should only invest in production tooling when your design is **finalized, tested, and validated**. If you are still in the iteration phase, or if you think you might need to change a snap-fit location or add a new feature in six months, *do not* make a production mold. Use prototyping and bridge tooling until your design is locked.
What is the primary driver for your project? If your goal is the absolute lowest possible price per piece for a mass-market product, no other process can compete with injection molding's efficiency. The high tooling cost is simply the price of entry for achieving a unit cost of pennies or even fractions of a penny.
This table breaks down the typical trade-offs:
| Process | Best for Volume | Upfront Cost | Unit Cost | Lead Time |
|---|---|---|---|---|
| 3D Printing (SLA/SLS) | 1 - 100 parts | None | High | 1-5 Days |
| CNC Machining | 1 - 1,000 parts | None (setup cost) | Medium | 1-2 Weeks |
| Urethane Casting | 10 - 200 parts | Low (silicone mold) | Medium-Low | 2-4 Weeks |
| Injection Molding | 5,000 - 1,000,000+ | Very High (steel mold) | Extremely Low | 6-16 Weeks |
Compared to 3D printing and CNC machining, injection molding has a much higher initial cost but a far lower unit cost and higher speed at scale. Compared to urethane casting, it has a higher upfront cost but better material properties and lower unit cost. Compared to Reaction Injection Molding (RIM), it is for thermoplastics, not thermosets.
Choosing injection molding also means *not* choosing another process. Here’s a quick comparison to see how they stack up.
This is a simple trade-off between speed/cost for one part versus one million parts.
3D Printing: Perfect for one-off prototypes. It's fast (hours/days) with no tooling cost. However, the unit cost is very high, material properties are often weaker, and it's extremely slow for production.
Injection Molding: The exact opposite. It's slow to start (months) with high tooling cost. But once it's running, the unit cost is incredibly low, and material properties are strong and isotropic.
This is a battle of additive/molded vs. subtractive manufacturing.
CNC Machining: Excellent for low-to-mid volume (1-1000 parts) and complex geometries that can't be molded. It uses real production plastics and has no tooling cost. Its drawbacks are a higher unit cost and significant material waste (it's a subtractive process).
Injection Molding: Far more efficient for high volumes. It has virtually no material waste (runners are reground) and can create complex features like living hinges that are impossible to machine.
Both processes use a mold, but the mold material and lifespan are vastly different.
Urethane Casting: Uses a soft silicone mold, which is cheap and fast to make (days). It's perfect for 10-200 high-quality, cosmetic parts. The drawbacks are that the mold wears out quickly, and the material (castable urethane) only simulates production plastics.
Injection Molding: Uses a hardened steel mold that lasts for hundreds of thousands of cycles. The upfront cost is much higher, but the unit cost is lower, and you are using true, final production-grade thermoplastics.
This is a common point of confusion, but the difference is simple: it's all about the material.
Injection Molding (IM): Used for thermoplastics—materials that can be melted, cooled, and re-melted (like ABS, PC, PP).
Reaction Injection Molding (RIM): Used for thermosets—liquid materials (like polyurethanes) that mix and cure inside the mold, undergoing an irreversible chemical change. RIM is great for very large, strong, lightweight parts like car bumpers.
While it varies greatly by part complexity, many projects find their break-even point between 1,000 and 10,000 units. Below this, the high tooling cost makes processes like CNC machining or urethane casting more economical. Above this, the low unit cost of molding quickly becomes the most cost-effective solution.
A very simple, single-cavity mold made from softer aluminum (bridge tooling) might start around $2,000 - $5,000. A simple, single-cavity production mold from P20 steel typically starts in the $5,000 - $15,000 range. Complex, multi-cavity, or hardened steel molds with slides/lifters can easily exceed $50,000 - $100,000.
Yes. When you pay a manufacturer (like GoodTech) for the "tooling cost," you are paying for the creation of a custom asset. You, the customer, own the mold. Reputable manufacturers will store, maintain, and insure the mold for you, but it is your property and cannot be used for any other customer's parts.
Poor DFM and mold design can lead to many defects, most commonly: sink marks (from non-uniform walls), short shots (incomplete parts due to poor venting or flow), flash (excess plastic leaking from the parting line), and warp (parts deforming as they cool unevenly).
It has trade-offs. The process itself is highly efficient, with very low waste (runners are often reground and reused) and low energy consumption per part at scale. The main environmental concern is the material itself (plastic). However, many recycled and bio-degradable thermoplastics can be used in injection molding.
"T1 samples" are the very first parts produced by the new mold. As noted in the lead time disadvantage, you can typically expect to see T1 samples **6 to 16 weeks** after you approve the final mold design, depending on the tool's complexity and the toolmaker's schedule.
Bridge Tooling is a mold made from a softer material, typically aluminum, instead of hardened steel. It's faster and cheaper to make. It won't last for millions of cycles, but it's perfect for "bridging" the gap between prototyping and mass production, for volumes of roughly 1,000 to 10,000 parts.
A cold runner is a simple channel that cools with the part and is ejected as a piece of scrap (which is then reground). A hot runner is a heated manifold system inside the mold that keeps the plastic molten, injecting it directly into the part with no runner scrap. Hot runner molds are more expensive but save material and reduce cycle times.
Injection molding is the undisputed king of mass production, offering incredible speed, precision, and a rock-bottom cost per part. Its "disadvantages"—the high upfront cost and long lead time—are not roadblocks, but calculated business investments. When managed properly, they are the gateway to scaling your product to hundreds of thousands or even millions of units.
The key is not just choosing a process, but choosing a partner who can guide you from the prototype stage all the way to mass production. At GoodTech Manufacturing, we specialize in helping you validate your design with rapid prototyping and CNC machining, ensuring you are 100% confident *before* you invest in high-volume tooling. Ready to find the most cost-effective path for your project? Upload your CAD file today for a free quote and a comprehensive DFM analysis from our expert engineers.
