Thermoset Injection Molding Services

At GoodTech, we specialize in precision thermoset injection molding to serve the automotive, electrical, and home appliance industries. Our capabilities cover a wide range of thermoset materials, including phenolic and epoxy compounds. We operate injection molding machines ranging from 120 to 380 tons, enabling us to produce small to medium-sized parts with excellent dimensional accuracy. Our expertise includes insert molding—combining thermoset materials with metal inserts or threaded components to enhance function and performance. Whether you're developing high-temperature resistant components for motors or durable switch housings, GoodTech delivers reliable, production-ready solutions tailored to your requirements.

What Is Thermoset Material and Thermoset Injection Molding?

Thermoset materials are a class of polymers that undergo a chemical transformation when heated and cured. Unlike thermoplastics, which can be melted and reshaped multiple times, thermosets form irreversible cross-linked structures once cured. This results in exceptional dimensional stability, heat resistance, and mechanical strength—making them ideal for demanding applications in electrical, automotive, and appliance components.

Thermoset injection molding is a process in which these materials—often in pellet, powder, or granular form—are injected into a heated mold cavity under pressure. Inside the mold, the material softens, flows into the shape of the part, and then chemically cures to become permanently hard. This curing process is triggered by heat and compression within the mold, typically at temperatures ranging from 150°C to 200°C, depending on the resin system.

The result is a durable, high-performance part that can withstand extreme temperatures, harsh chemicals, and long-term mechanical stress. Common thermoset materials used in injection molding include phenolic, epoxy, and bulk molding compounds (BMC), often chosen for their electrical insulation properties, flame resistance, and structural integrity.

Thermoset injection molding combines the design freedom of plastic processing with the performance characteristics of metal or ceramics—offering a powerful solution for today’s high-performance parts.

Advantages of Thermoset Molded Parts vs. Thermoplastics

Thermoset molded parts offer several key advantages over thermoplastics, especially when strength, heat resistance, and dimensional stability are critical.

1. Superior Heat Resistance

Thermoset materials are ideal for high-temperature environments. Once cured, they retain their shape and performance even under continuous exposure to heat, typically up to 200°C or more. Thermoplastics, in contrast, tend to soften or deform under similar conditions.

2.Dimensional Stability

Thermoset polymers do not melt or flow once cured. This ensures that molded parts maintain tight tolerances and resist warping or creeping over time—making them perfect for precision electrical and structural components.

3. Excellent Electrical Insulation

Materials like phenolic and epoxy resins are inherently insulating and flame-retardant. This makes thermosets the preferred choice for circuit breakers, terminal blocks, switches, and other electronic applications where safety and reliability are essential.

4. Chemical and Creep Resistance

Thermoset plastics are more resistant to chemicals, solvents, and fatigue than many thermoplastics. They also offer better long-term mechanical strength, even under sustained loads and environmental stress.

5. Insert Molding Capability

Thermoset molding allows easy overmolding of metal inserts such as threads, contacts, or bushings. Once cured, the resin tightly bonds with the insert, creating a secure mechanical connection that won’t loosen or degrade over time.

GET A QUOTE

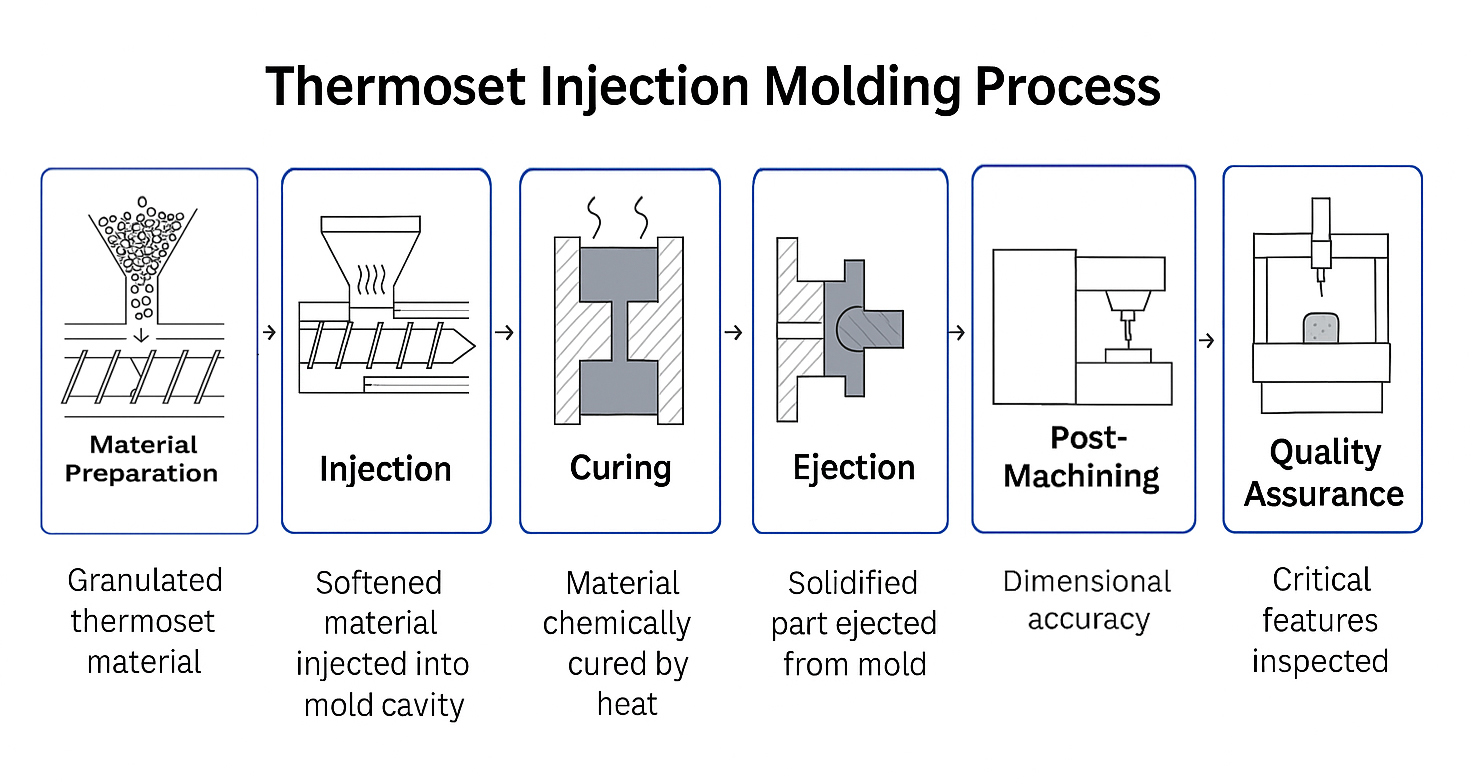

The Thermoset Injection Molding Process: From Raw Material to Precision Component

Thermoset injection molding is a multi-step process designed to create high-performance parts with tight tolerances and excellent heat and chemical resistance. Below is a breakdown of how we transform raw thermoset material into finished, production-grade components:

1. Material Preparation
Thermoset materials typically come in the form of granules, powders, or pre-blended compounds (known as B-stage resins). Common materials include phenolic, epoxy, and polyester resins. At this stage:
● The material is dried (if needed) to prevent moisture-related defects.
● Fillers, colorants, and reinforcing agents (such as glass fibers) may be mixed to enhance performance.
● Material is staged in sealed containers to prevent premature curing from heat or humidity.

3. Injection Process

The preheated thermoset resin is fed into a specially designed injection molding machine. Unlike thermoplastic injection, the screw and barrel are kept at a low temperature to prevent premature curing during the feeding stage. Once injected into the mold cavity:

● The material flows under high pressure and fills the shape of the mold.

● Heat from the mold rapidly initiates the cross-linking chemical reaction.

● A holding phase maintains pressure to ensure complete mold filling and insert bonding if needed.

5. Cooling and Demolding

Once the cure is complete, the mold opens and the part is ejected using automated ejector pins or manual handling. Thanks to the rigid structure of thermosets, warping or deformation is rare even after demolding.

7.Quality Assurance

Each production run is monitored for dimensional accuracy, resin flow consistency, insert adhesion, and cosmetic standards. In high-reliability industries (e.g., automotive and electrical), parts may also undergo 100% functional testing or First Article Inspection (FAI).

2. Mold Tooling Setup
The mold tool is pre-heated to a controlled temperature, usually between 150°C and 200°C depending on the resin. Unlike thermoplastics, thermoset molds require heated cavities to initiate curing. Mold surfaces are coated with a release agent to ensure smooth demolding and protect mold life.

4. Curing and Solidification

As the chemical cross-linking reaction progresses, the material transitions from a soft plastic state to a rigid thermoset structure. This irreversible process ensures the final part:
● Will not soften or melt again, even at elevated temperatures.
● Has enhanced mechanical and electrical properties.
● Achieves full structural strength in a relatively short curing cycle.
Cure time depends on:
● Wall thickness
● Resin type
● Mold temperature
● Part geometry
Typical cure cycles range from 30 seconds to several minutes.

6. Post-Molding Operations

Depending on the application, molded parts may undergo:
● Trimming or flash removal
● Insert inspection
● Post-curing in ovens (for certain materials to enhance thermal stability)
● Surface treatment, painting, or labeling
● Electrical or dimensional testing

GET A QUOTE

What Thermoset Materials Can Be Injection Molded?

Thermoset materials used in injection molding are specially formulated to withstand high temperatures, chemical exposure, and mechanical stress without softening or deforming. Unlike thermoplastics, which can be remelted, thermosets form permanent cross-linked bonds during curing, making them ideal for demanding environments like electrical systems, engines, and industrial machinery.
At Goodtech, we work with a wide range of thermoset resins tailored for different performance requirements. Below are some of the most commonly used materials in thermoset injection molding:

1. Phenolic Resins (PF)

Phenolics are among the most widely used thermoset plastics. They offer:
● Excellent thermal resistance (up to 200°C or higher)
● Outstanding electrical insulation properties
● Flame retardancy and low smoke emission
● Dimensional stability and rigidity
Applications: Electrical connectors, appliance handles, circuit breaker housings, distributor caps, automotive under-the-hood components.

3. Melamine Formaldehyde (MF) & Urea Formaldehyde (UF)

These resins are often used in decorative and household applications where aesthetics and hardness are key. They provide:
● Glossy finish and excellent color retention
● High surface hardness and scratch resistance
● Flame resistance and electrical insulating capability
Applications: Appliance knobs, tableware, light switch panels, electrical sockets, and trim parts.

2. Epoxy Resins (EP)

Epoxies are known for their exceptional adhesion and chemical resistance. When used in molding compounds, they provide:
● Superior mechanical strength
● Low shrinkage during curing
● High dielectric strength
● Resistance to moisture and corrosion
Applications: Electrical insulators, motor housings, electronic encapsulation, switchgear components.

4. Unsaturated Polyester (UP) and Bulk Molding Compounds (BMC)

Polyester-based thermosets, often reinforced with glass fibers, are commonly used in structural and electrical applications. BMC formulations provide:
● High mechanical strength
● Good electrical insulation
● Corrosion resistance
● Cost-effective tooling and molding
Applications: Automotive lamp housings, electrical enclosures, valve bodies, sensor mounts.

Industries & Applications of Thermoset Injection Molding

Thermoset injection molding is uniquely suited for producing components that demand excellent heat resistance, dimensional stability, and superior electrical insulation. These properties make thermoset materials the preferred choice for many high-performance applications across a wide range of industries. Below is a closer look at how different sectors benefit from thermoset injection molded parts:

1. Electrical and Electronics Industry
Thermosets such as phenolic and epoxy resins are widely used for their outstanding electrical insulating properties and resistance to heat and arcing.
Key applications include:

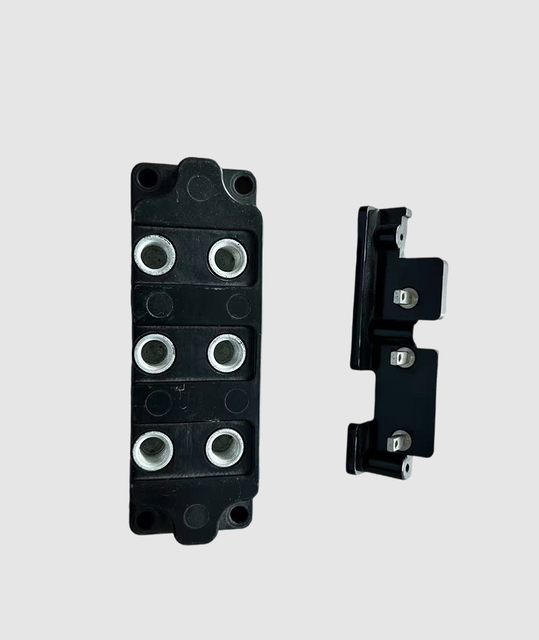

●Terminal blocks and switchgear housings that require high dielectric strength
● Coil bobbins and electrical connectors that must retain shape under thermal load
● Motor housings for small motors in appliances and industrial automation

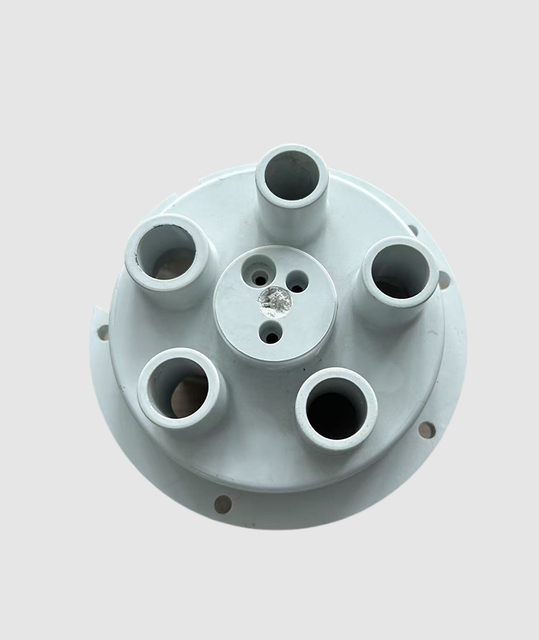

● Circuit breaker casings and insulator components in power systems
These materials prevent electrical failure, maintain insulation at elevated temperatures, and support compact, reliable electrical designs.

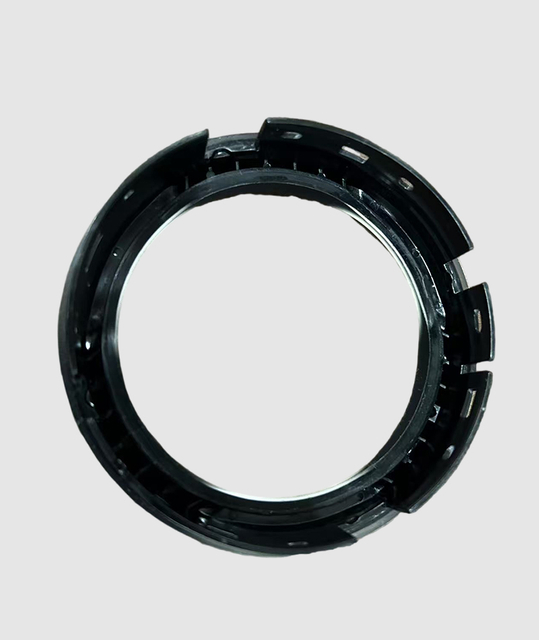

2. Automotive Industry
The automotive sector relies heavily on thermoset molded parts for under-the-hood and safety-critical components due to their resistance to heat, chemicals, and mechanical stress.
Typical applications include:
● Engine bay components such as sensor housings, ignition system parts, and fuel system brackets
● Brake system parts that require dimensional stability and thermal endurance
●Transmission control modules and battery insulators
● High-precision bushings, covers, and mountings
Thermosets also help reduce part weight without sacrificing performance, contributing to fuel efficiency and compliance with stringent automotive standards.

3. Home Appliances & Consumer Goods
Thermoset materials are often chosen for parts in appliances and consumer electronics where high heat or wear is expected.
Examples include:

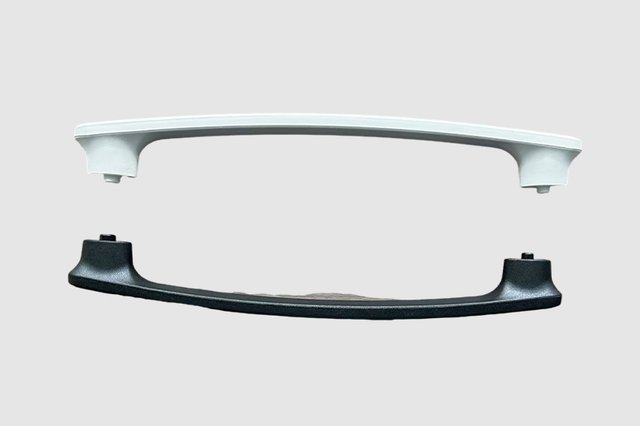

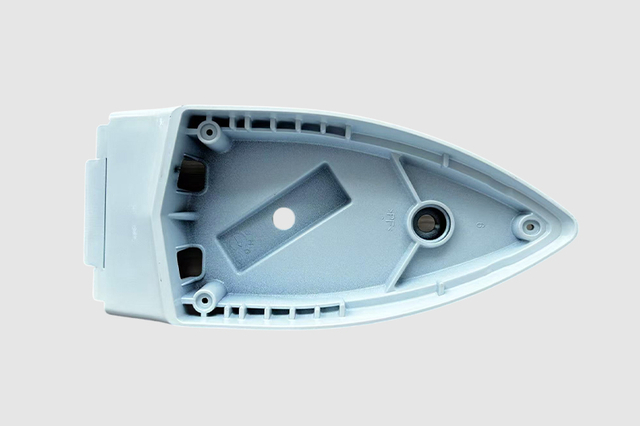

● Handles, knobs, and dials on ovens, toasters, and irons

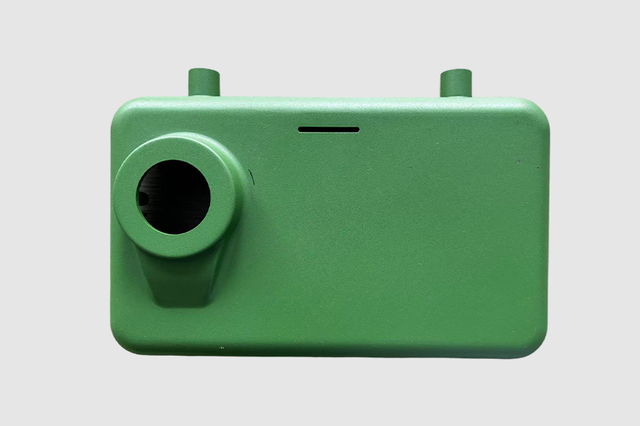

● Housing and enclosures for hairdryers, coffee machines, and blenders
● Electrical plug inserts, switches, and fuse holders
These parts retain their shape and surface finish over time, even after prolonged exposure to heat and cleaning agents.

4. Industrial & Energy Sectors
In harsh industrial environments, thermoset components offer long-term stability and resistance to moisture, oil, chemicals, and temperature cycling.

Applications cover:
● High-temperature insulators and sealing parts in industrial equipment
● Meter housings, sensor shields, and connectors for process automation
● Pump and valve components in chemical processing plants
● Electrical enclosures and terminal assemblies for renewable energy systems

Because these parts often operate in mission-critical settings, thermosets are selected for their mechanical integrity and resistance to creep under load.

5. Medical and Laboratory Equipment

While less common than thermoplastics in medical applications, certain thermosets are still used when high temperature resistance and chemical durability are needed.

Representative applications:

● Autoclavable components for sterilizable lab instruments
● Diagnostic device housings exposed to solvents or disinfectants
● Isolation bushings and brackets in electrically sensitive equipment

Why These Applications Choose Thermosets

Thermal Stability

Can withstand continuous use at 150–250°C

Chemical Resistance

Resistant to oils, acids, and cleaning agents

Creep Resistance

Maintains dimensional stability over long durations under stress

Non-Meltable

Once cured, thermosets do not melt or deform

Cost Efficiency

Enables net-shape molding with minimal machining

By leveraging thermoset injection molding, manufacturers across these industries can produce parts that combine high performance with precision, reliability, and cost-effectiveness. Whether it's a phenolic switchgear housing or a glass-filled epoxy sensor cover, thermoset molding plays a vital role in advancing product durability and function in demanding environments.

Goodtech’s Process Control and Quality Management

Producing high-performance thermoset parts requires more than just the right materials — it demands rigorous process control, experienced engineering, and precise quality management. At Goodtech, we’ve built our thermoset molding process around consistency, repeatability, and compliance with critical industry standards. Below is an overview of how we ensure every part meets your expectations.

1. Design for Thermoset Manufacturing (DFM) Support
Our team provides design consultation during the early stages to optimize your part for thermoset injection molding. We help with:
● Draft angle recommendations
● Wall thickness balance
● Gate and venting placement
● Insert integration and alignment
This proactive approach reduces defects such as warping, air traps, and flow marks, while improving moldability and production yield.

2. Precision Mold Fabrication and Maintenance
Tooling is key to quality. We manufacture and maintain high-tolerance molds designed specifically for thermoset compounds, which are abrasive and require hardened steels (e.g., H13, S136).

We also apply:

● Mold surface texturing or polishing based on your cosmetic needs
● Cooling and heating channel optimization for cycle time control
● Regular inspection and cleaning to extend mold life

3. Strict Material Handling and Preparation
Thermoset compounds are sensitive to moisture and must be processed under tightly controlled conditions. At Goodtech, we:
● Store materials in humidity-controlled environments
● Use preheating or drying as required (especially for phenolics and epoxy)
● Accurately meter and feed materials using vacuum loaders or sealed systems
● Label and track batches to maintain full material traceability

4. Controlled Molding Process with Advanced Machines
Our thermoset injection molding presses (120 to 380 tons) are equipped with temperature-controlled barrels, heated molds, and precision pressure controls.
To ensure consistent quality, we monitor and control:
● Injection pressure and speed
● Clamp force and cycle time
● Mold temperature and curing time
● Insert placement (for overmolding applications)
We also integrate real-time data logging for traceability and process validation.

5.Automation and In-Process Inspection
Goodtech incorporates automation where possible to boost consistency and productivity:
● Robotic insert loading and part ejection
● Automated visual inspection for surface defects
● In-line temperature and pressure sensors for process validation

For complex or high-volume projects, we also deploy SPC (Statistical Process Control) methods to monitor variations and prevent drift.

6. Comprehensive Quality Control
Our quality team ensures that every batch and part conforms to your specifications through:
● First Article Inspection (FAI) and Initial Sample Inspection Reports (ISIR)
● Dimensional checks using calibrated tools and CMM
● Functional and mechanical tests (e.g., torque, pull-out, thermal resistance)
● Visual inspection under standardized lighting conditions
We maintain full documentation and offer PPAP (Production Part Approval Process) submission for automotive or regulated industries.

7. Certifications and Compliance
Goodtech is ISO 9001 certified and committed to continuous improvement. We ensure compliance with industry and environmental standards, such as:
● RoHS and REACH for materials
● UL flammability requirements (e.g., UL 94 V-0 rated resins)
● Customer-specific standards for electrical and appliance components

8. Engineering Support Throughout the Lifecycle
Whether you're developing a new product or optimizing an existing one, we work closely with your engineering team to:
● Troubleshoot molding challenges
● Recommend cost-saving alternatives
● Support long-term part reliability through iterative feedback
With our integrated approach, we serve not only as a manufacturer but also as a technical partner.
