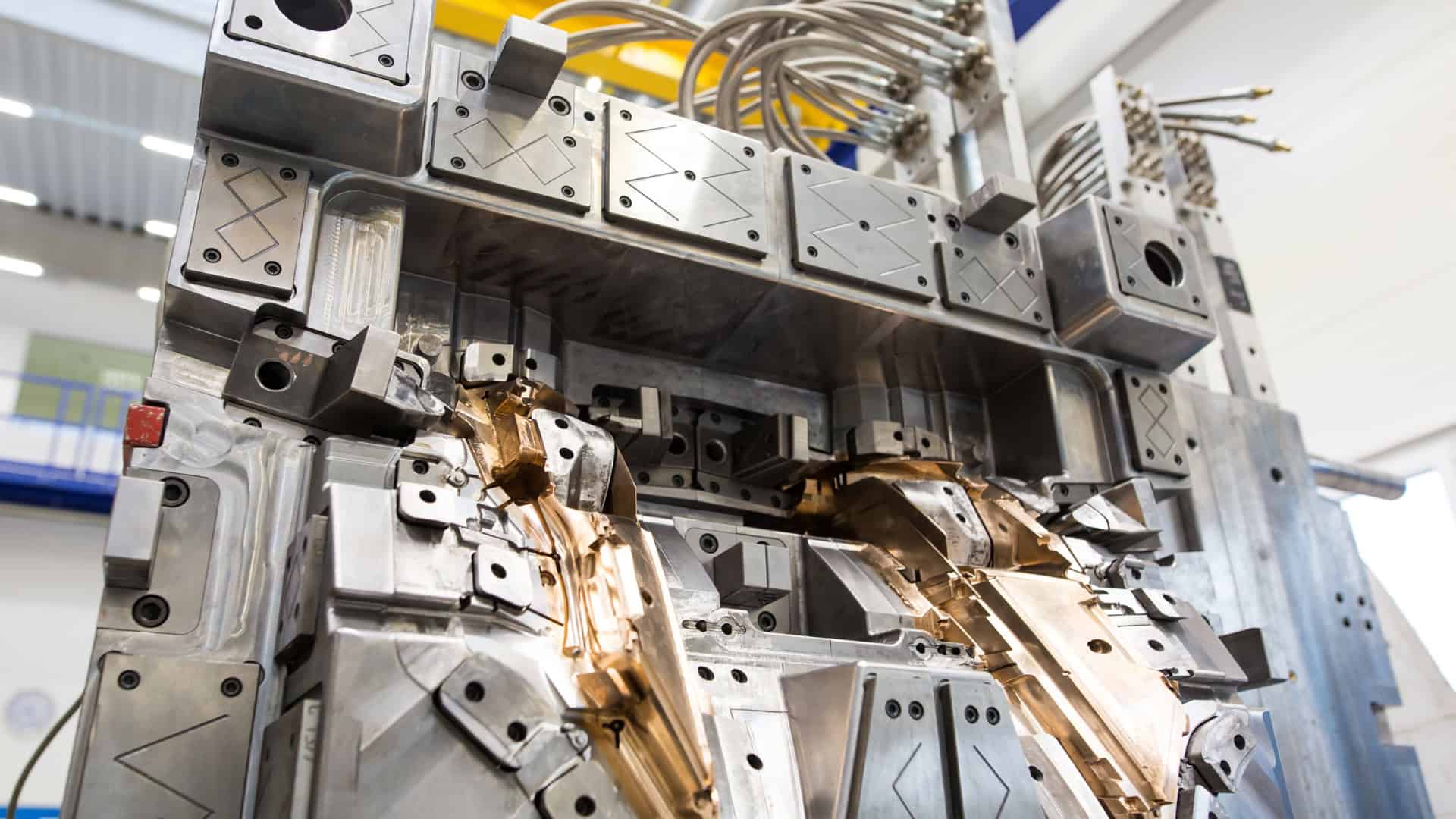

In the high-stakes race to market, the choice between aluminum and steel molds often dictates whether a project launches in weeks or months. While traditional manufacturing favors the brute durability of steel, modern rapid tooling leverages high-grade aluminum alloys to bridge the gap between initial prototyping and full-scale production without the crippling lead times or five-figure upfront costs.
This article explores the technical nuances of the rapid tooling debate, analyzing why aluminum’s thermal conductivity (3 to 6 times higher than steel) and 50% faster machining speeds are revolutionizing the industry. We will break down the economics of the $1,500–$5,000 price point, evaluate the 10,000-shot durability ceiling of 7075 alloys, and discuss why hybrid tooling strategies are becoming the primary solution for startups and OEMs alike.
Aluminum’s superior machinability stems from its lower hardness and non-abrasive nature, allowing cutting speeds up to 1500–2000 fpm—nearly 2–5x that of steel. This efficiency is amplified by its high thermal conductivity and compatibility with advanced diamond tooling, which prevents the thermal degradation seen when machining ferrous alloys.
The fundamental advantage of aluminum in a CNC environment is its metallurgical composition. Unlike ferrous metals, non-ferrous materials such as 6061-T6 (ASTM B209) are essentially non-abrasive. This characteristic results in significantly lower cutting forces compared to AISI 1040 or P20 steel, reducing the mechanical strain on both the CNC spindle and the cutting edges of the tools.
Furthermore, aluminum's high thermal conductivity plays a critical role in cycle time reduction. During high-speed machining, heat is a primary driver of tool failure; however, aluminum dissipates heat rapidly from the cutting zone. This rapid thermal transfer maintains tool integrity even at accelerated spindle speeds, allowing for continuous machining without the cooling pauses often required for dense steels.
Finally, the lower strength and hardness of aluminum-silicon alloys enable high-speed finishing with exceptionally fine step-downs. This is crucial for rapid tooling, as it allows machines to achieve superior surface finishes at feed rates that would cause catastrophic tool wear in AISI 1040 or similar carbon steels.
The technical benchmarks for cutting speeds reveal a massive performance gap between aluminum and steel. While machine and process limits often keep steel within a practical range of 1000 fpm, aluminum benchmarks are significantly higher:
Aluminum allows for surface speeds of 600–1500 fpm, reaching up to 2000 fpm when utilizing PCD or diamond tooling.
Compatibility with CVD diamond tools avoids "graphitization," a diamond-to-carbon transformation that occurs when machining ferrous alloys at high temperatures.
Al2O3-coated carbides can boost cutting speeds by 20–50% over uncoated tools while maintaining consistent tool life.
According to the Machinery’s Handbook, the inability to use diamond tools on steel due to thermal instability limits the usable cutting speed range for ferrous alloys. In industrial practice, this translates into spindle speeds for aluminum that are often double those safely used for common steels on the same CNC platform. By stacking the benefits of high thermal conductivity with advanced diamond tool compatibility, aluminum rapid tooling operations achieve cycle times that are simply unreachable with P20 or H13 mold steels.
Aluminum rapid tooling leverages CNC machining and 7075 alloys to deliver mass-production quality parts in 1-2 weeks. Since aluminum machines 5-10x faster than steel, it enables 1,000+ parts through injection molding or casting, bridging the gap between prototyping and high-volume production while meeting tight market deadlines.
| Metric | Aluminum Rapid Tooling | Traditional Steel Tooling |
|---|---|---|
| Lead Time | 1–2 Weeks | 8–12 Weeks |
| Machining Speed | 5–10x Faster | Standard Baseline |
| Typical Volume | 500–10,000 Parts | 100,000+ Parts |
The shift from traditional manufacturing to rapid tooling is primarily driven by the physics of the materials involved. Machining aluminum is significantly more efficient than steel, often clocked at five to ten times faster. This drastic reduction in CNC cycle times allows for the creation of complex molds in a fraction of the time, moving a project from a digital CAD file to a physical mold in just days.
Rapid tooling cycle times of 1-2 weeks produce hundreds to thousands of parts, far outpacing the 8-12 week wait times typical of steel production molds.
SLM 3D printing combined with precision machining offers functional validation for engine components or housings in as little as 5 days.
Startups and OEMs use this speed to secure "market-first" advantages, fulfilling initial orders while permanent production tooling is still being fabricated.
While speed is the primary allure, the technical integrity of the tools ensures that "rapid" does not mean "low quality." Modern rapid tooling utilizes high-grade 7075 aluminum alloy, which offers an exceptional balance of strength, fatigue resistance, and thermal conductivity. This alloy is highly polishable, allowing for surface finishes that rival permanent steel tools.
For projects requiring higher durability without sacrificing the speed of aluminum, engineers often employ hybrid tooling strategies. By combining aluminum cavities with P20 steel inserts, manufacturers can optimize tool life and thermal management. This allows the tool to maintain tight tolerances and high precision, significantly outperforming the rougher finishes and wider tolerances found in traditional rapid casting methods.
7075 aluminum provides enough durability for up to 10,000 shots depending on the resin used.
Shot life typically ranges from 2,000 to 5,000 for complex or fiber-reinforced polymers which are more abrasive.
CNC machining ensures high precision, making these tools ideal for industrial applications like housings and internal mechanical components.
Aluminum’s thermal conductivity (120–180 W/m·K) is 3 to 6 times higher than standard mold steels like P20 or H13. This allows the tool to pull heat away from the plastic melt rapidly, cutting cooling phases by up to 88% and enabling high-throughput production of 1,000+ parts in tight two-week windows.
The fundamental advantage of aluminum in rapid tooling lies in its atomic structure, which facilitates rapid energy transfer. While traditional mold steels like P20 and H13 are prized for their extreme hardness, they act as thermal insulators compared to aluminum alloys. Mold-grade aluminum alloys, such as Al 7075, QC-10, and Alumec 89, offer a thermal conductivity range of 120–180 W/m·K, whereas standard tool steels typically stall between 25–40 W/m·K.
Melt-to-coolant efficiency: The high bulk conductivity of aluminum pulls heat from the plastic melt and transfers it into internal cooling channels significantly faster than steel.
Uniform heat distribution: Aluminum reduces core-cavity temperature imbalances to as little as 13%, which is critical for maintaining part integrity.
Thermal stability: Faster heat transfer prevents localized "hot spots" in the mold that typically lead to sink marks or dimensional drift in the final product.
For engineering teams, this means that even complex geometries can be cooled with higher uniformity. By minimizing temperature differentials between the core and cavity, aluminum tooling effectively lowers the risk of part warpage, ensuring that the first shot is as dimensionally accurate as the thousandth.
In injection molding, the cooling phase is the most time-consuming portion of the cycle. Engineering research demonstrates that transitioning from a tool with no cooling to one utilizing surface-cooled channels can reduce LDPE cooling times from 4,801 seconds down to just 401 seconds. This 88% reduction is made possible by aluminum's ability to act as a high-performance heat sink when paired with advanced channel geometries.
Roughness and Surface Area: Increasing the internal roughness of cooling channels (from Sz 2.4 µm to 4.9 µm) can boost early cooling rates from 2.13 °C/s to 3.97 °C/s.
Conformal Cooling Synergy: Aluminum's excellent machinability allows toolmakers to create conformal circuits that closely follow part geometry.
Throughput Gains: Reduced cooling phases allow facilities to deliver more shots per day, making it possible to hit aggressive delivery targets for startups and bridge production runs.
By leveraging the high thermal conductivity of mold-grade alloys, manufacturers can utilize lower injection pressures (approximately 10 MPa for LDPE) and maintain stable mold temperatures (30 °C). These conditions not only extend the life of the aluminum tool but also ensure that high-polish finishes and tight tolerances are maintained throughout the production window, proving that thermal efficiency and aesthetic quality can effectively coexist in modern rapid tooling.
Aluminum molds, specifically 7075 alloy, hit a durability ceiling at approximately 10,000 shots. While ideal for rapid prototyping, they cannot match the wear resistance of P20 steel when facing high injection pressures, abrasive glass-filled resins, or corrosive polymers like PVC that cause rapid tool degradation.
While aluminum is celebrated for its speed in the prototyping phase, it possesses inherent physical limitations that define its "ceiling" in a production environment. Most 7000-series aluminum alloys used in tooling offer a life expectancy ranging from as few as 2,000 to a maximum of 10,000 shots, a figure heavily dependent on the complexity of the part and the specific polymer being injected.
Susceptibility to surface wear and "flash" formation under constant high injection pressures.
Limited fatigue resistance compared to steel when subjected to repeated thermal cycling and mechanical clamping forces.
High vulnerability to corrosive polymers like PVC which can pit and degrade 7075 aluminum surfaces significantly faster than steel.
This vulnerability to mechanical and chemical stress means that as volume increases, the cost savings of aluminum are often negated by the need for tool maintenance or total replacement. The softer surface of the alloy simply cannot withstand the abrasive nature of reinforced resins—such as those containing glass fibers—which act like sandpaper against the mold cavity over time.
To bridge the gap between rapid tooling and full-scale production, engineers often employ a hybrid strategy. By integrating P20 soft steel inserts into high-wear areas, such as gates and sharp corners, manufacturers can effectively extend the life of an aluminum mold without the lead time of a full steel tool. This approach allows for the thermal benefits of aluminum while protecting the most vulnerable features of the geometry.
Utilizing 7075 or 7050 alloys specifically for their superior polishability and strength among the 7000 series.
Transitioning to full P20 steel tooling for production runs exceeding the 10,000-unit mid-volume threshold.
Hybrid mold strategy: Using an aluminum base for thermal conductivity (shorter cycles) with a steel core for critical tight-tolerance features.
Ultimately, the decision to pivot to steel is driven by the volume and the resin type. While aluminum can be machined 5 to 10 times faster than steel, facilitating 1-2 week turnarounds, P20 steel remains the industry standard for sustained production. The hybrid approach serves as an ideal "bridge," allowing companies to scale from 1,000 parts to higher mid-volumes while maintaining part integrity and dimensional stability.
Aluminum’s low melting point (1,220°F) and rapid heat dissipation make standard welding methods ineffective. Repairs often require pulsed MIG/TIG welding, precise thermal control between 400°F–570°F, and dedicated clean rooms to prevent galvanic corrosion and brittleness from work-hardening.
The primary challenge in repairing aluminum tooling lies in its fundamental physical properties, specifically its lack of "shape memory." Unlike steel, which can often be manipulated back into position, aluminum is highly susceptible to work-hardening. This means that as the metal is bent or reshaped manually, it quickly becomes brittle, leading to an increased risk of cracking and internal structural failure.
Thermal constraints: Aluminum begins the annealing process at approximately 750°F. Maintenance teams must operate within a narrow window of 250°F to 450°F to avoid compromising the mold's structural integrity or breaking down critical adhesives.
Abrasive wear: Aluminum cavities are significantly softer than P20 or H13 steel, causing them to scratch easily when processing glass-filled or abrasive polymers.
Because of these sensitivities, surface restoration is required more frequently than with traditional tool steels. If thermal limits are exceeded during a repair attempt, the mold may lose its temper entirely, rendering it useless for high-pressure injection molding applications.
Maintaining aluminum molds requires a departure from standard machine shop practices. The rapid heat dissipation of the alloy means that traditional oxy-acetylene or standard arc welding will likely Result in warped cavities or "sink" marks rather than a successful bond.
Welding technology: Successful repairs require pulsed MIG or high-frequency TIG systems. These systems manage the oxide layer formation, which must be addressed within a strict 20-30 minute window after cleaning.
Economic impact: Since repair cycles take 20% to 40% longer due to cooling and testing requirements, labor rates are typically 2x to 4x higher than those for steel.
Contamination prevention: To prevent galvanic corrosion, shops must utilize dedicated aluminum-only tools, such as specialty hammers and dollies, followed by dye penetrant testing to identify micro-cracking.
Ultimately, the complexity of these procedures often leads manufacturers to favor replacement over repair for smaller inserts. Maintaining structural integrity is paramount, and the thin margin for error in aluminum welding makes OEM-guided protocols—such as strict temperature monitoring and limits on filler thickness—mandatory for any tool destined for production use.
Yes, aluminum molds can achieve high-gloss, mirror-like finishes. By using diamond abrasives and specific machining techniques like climb milling, aluminum can reach SPI A-1 standards (0.012–0.025 µm RA), making it suitable for optical-quality prototypes and clear plastic parts.
| SPI Grade | Roughness (µm RA) | Finishing Method |
|---|---|---|
| SPI A-1 (Super Gloss) | 0.012 - 0.025 | 6000-Grit Diamond Polish |
| SPI A-2 (High Gloss) | 0.025 - 0.05 | 3000-Grit Diamond Polish |
| SPI A-3 (Normal Gloss) | 0.05 - 0.10 | 1200-Grit Diamond Polish |
| As-Machined Tooling | 1.6 - 3.2 | Standard CNC Carbide Milling |
The transition from a raw, machined aluminum block to an optical-grade mold surface is a specialized process that leverages the material's lower hardness. Because aluminum 6061 is more malleable than tool steel, it responds efficiently to diamond abrasives, allowing technicians to reach high-aesthetic thresholds with significantly less labor time.
Aluminum supports SPI A-1 'Super' glossy finishes (0.012-0.025 µm RA) using 6000-Grit Diamond abrasives.
Standard high-gloss requirements (SPI A-2) are reached with 3000-Grit Diamond (0.025-0.05 µm RA).
Polishing aluminum is significantly faster than steel—often 5 to 10 times quicker—due to the material's lower hardness and reduced tool wear.
Ideal for medical enclosures and consumer electronics housings requiring high-aesthetic 'as-molded' surfaces.
While secondary polishing provides the final shine, the foundational surface quality is determined during the CNC machining phase. Achieving a precision finish requires a departure from aggressive bulk-removal strategies, focusing instead on high-speed spindle cycles and specialized tool coatings that prevent material deformation.
As-machined 6061 aluminum typically yields a surface roughness of Ra 1.6-3.2 µm with standard carbide end mills.
Mirror EDM and TiB2-coated 3-flute cutters can reduce as-machined roughness to 0.8 µm for precision sealing or aesthetic surfaces.
Optimization techniques such as light step-overs and high spindle speeds prevent the 'tearing' often associated with aluminum's softness.
GoodTech utilizes high-speed CNC and CMM-based inspection to ensure surface consistency across complex geometries like side actions and sliders.
By balancing these technical parameters, manufacturers can meet tight two-week lead times for 1,000-part runs while maintaining the "as-molded" quality typically reserved for high-volume production steel tools. The key lies in controlled cooling and rigid fixturing to eliminate tool marks before the manual polishing begins.
Hybrid molds utilize high-strength steel cores (like H13 or P20) in high-wear areas paired with aluminum bases (7075-T6). This configuration offers the best of both worlds: the 1,000,000+ cycle durability of steel in critical zones and the 200-300% faster thermal dissipation of aluminum for reduced cycle times.
The engineering logic behind hybrid tooling rests on a strategic division of mechanical labor. By utilizing H13 chromium hot work tool steel, P20, or S7 for the cores and cavities, manufacturers create a robust interface capable of withstanding extreme injection pressures and the abrasive nature of modern resins. This ensures that the primary forming surfaces maintain their geometric integrity over long production runs.
Integration of 7075-T6 or 6061-T6 aluminum alloys for the mold base to leverage a density approximately 1/3 that of steel.
Balancing steel's surface hardness and polishability for medical-grade finishes with aluminum's superior machinability for faster tool fabrication.
When evaluating performance metrics, the hybrid approach provides a distinct thermal advantage. Because aluminum offers two to three times higher heat dissipation rates than traditional steel, the cooling phase of the injection cycle is significantly compressed. This reduction in cycle time directly translates to higher throughput and lower per-part costs without sacrificing the detail achieved through precision-ground steel inserts.
Lifespan comparison: Steel inserts extend tool life to over 1,000,000 cycles, whereas pure aluminum tooling typically ranges from 10,000 to 100,000 cycles.
Application in rapid tooling: Ideal for startups needing 1,000+ parts within a two-week window using glass-filled or high-pressure materials.
Manufacturing efficiency: Reduces the need for extensive post-hot work tempering on the aluminum sections, cutting lead times by days or weeks.
Aluminum tooling significantly reduces upfront costs, with rapid molds priced between $1,500 and $5,000 compared to over $25,000 for steel. Savings are driven by 3-5x faster machining speeds and raw material costs that are nearly 70% lower than stainless steel, making it the most economical choice for runs of 100 to 1,000 parts.
The initial capital expenditure for aluminum molds is drastically lower than steel alternatives due to a combination of lower raw material prices and simplified fabrication requirements. For instance, a standard 6″×6″×1″ block of Aluminum 6061 costs approximately $25, whereas an equivalent block of 304 stainless steel reaches nearly $90. These material savings scale quickly when considering larger multi-cavity tool bases.
Rapid aluminum tooling setup costs range from $1,500–$5,000 for single-cavity molds, compared to high-volume steel tooling which starts at $25,000.
Shared mold bases like MUD (Master Unit Die) systems can further slash costs by 30-50% by machining only the aluminum inserts.
Solid extrusion dies for aluminum remain highly accessible, with costs typically situated between $1,250 and $1,950.
Beyond the purchase price of the metal, the primary driver of cost reduction is the material removal rate. Aluminum's ability to be machined 3 to 5 times faster than hardened steel directly correlates to lower shop rates. Given that machine time typically accounts for 30% to 50% of the total manufacturing expense, the efficiency of aluminum translates into significant per-part savings during the tooling phase.
CNC machining costs for aluminum range from $0.50 to $3.00 per minute, reflecting the reduced tool wear and faster spindle speeds possible with softer alloys.
Breakeven analysis shows aluminum molds become more cost-effective than 3D printing at approximately 100 parts.
Tiered volume discounts offer 15-30% savings for runs of 26-100 parts and 5-15% for quantities exceeding 100 units.
For manufacturers targeting the "missing middle" of production—runs between 100 and 1,000 units—aluminum represents a sweet spot in amortization. While a 3D-printed batch of 200 parts might cost $8,000, the same volume produced via rapid aluminum tooling would total roughly $5,000, including the upfront mold cost. This makes it the premier choice for startups transitioning from prototype to market entry.
Traditional molders often resist aluminum due to a 'steel-only' mindset formed when early aluminum alloys couldn't handle high-volume wear. However, modern 7075-T651 alloys with hard coatings now achieve up to 200,000+ cycles, challenging the outdated belief that aluminum is strictly for low-fidelity prototyping.
Traditional skepticism is rooted in the significant hardness gap between raw materials. Untreated 7075‑T651 aluminum averages approximately 150–170 HB on the Brinell scale, which pales in comparison to industry standards like P20 steel at 280–320 HB or hardened H13 steel, which can exceed 460 HB. This disparity leads many veteran engineers to view aluminum as a fragile medium incapable of enduring the rigors of a production environment.
Legacy concerns focus primarily on the physical failures of "soft" tooling, such as galling and flashing under high clamp forces. Because early aluminum molds often lost their dimensional integrity during long campaigns, many molders erroneously categorized the material as a high-risk liability suitable only for simple, low-fidelity prototypes rather than functional parts.
Beyond material science, there is a significant psychological and operational barrier to adoption. Most established injection molding shops have entrenched capital investments in heavy steel tooling workflows. Adopting lightweight, high-speed aluminum alternatives requires a shift in setup, handling, and maintenance protocols that many traditional facilities are simply not equipped—or willing—to implement.
The modern performance of aluminum is no longer dictated by its raw hardness, but by advanced surface engineering. By applying specific treatments, engineers can now bridge the gap between aluminum's machinability and steel's durability.
Surface Hardening: Hard anodizing or electroless nickel plating can elevate surface hardness to HRC 50–60, effectively matching the wear resistance of hardened tool steel.
Thermal Conductivity: Aluminum offers 5–6× higher thermal conductivity (~138 W/m·K) than steel (~46 W/m·K), enabling 20–40% faster molding cycles.
High-Volume Success: Documented cases show aluminum tools running 30% glass‑filled resins exceeding 200,000 to 2,000,000 cycles without failure.
Efficiency: Aluminum molds can reduce initial tooling costs by 30–50% and are typically delivered in half the time required for steel.
Despite lingering molder resistance, the "speed demon" factor remains the most undeniable advantage of the material. The superior heat dissipation of alloys like A5052 not only speeds up the manufacturing process but also results in parts with lower residual stress and reduced warpage, particularly in thin-walled applications. For modern startups and high-velocity manufacturers, the data suggests that aluminum is no longer just a prototype material, but a viable production powerhouse.
The ideal 'sweet spot' for aluminum molds is between 500 and 35,000 parts per year, with a core efficiency zone of 3,000 to 12,000 units. Within this range, aluminum offers 50% faster cycles and significantly lower tooling costs while maintaining a high-quality surface finish (polishability) suitable for medical and consumer electronics.
Identifying the quantitative "sweet spot" for permanent aluminum molds is critical for project ROI, as the economic benefits are most pronounced within a specific volume corridor. Research indicates that the primary application range falls between 500 and 35,000 parts per year, with the most significant returns clustered in programs requiring 3,000 to 12,000 units annually.
Below 500 units: Sand casting or 3D printing methods often remain more economical due to lower initial setup costs.
Above 35,000 units: The economics typically shift toward hardened steel die-cast tooling to accommodate high-volume wear and tear.
Lead Time: Aluminum is the rational choice for startups needing 1,000+ parts within a tight two-week window, balancing rapid deployment with mid-volume efficiency.
To achieve these production targets, high-performance alloys such as QC-10 and Alumold 500® are utilized for their superior thermal and mechanical envelopes. These materials are engineered to provide the rapid heat extraction necessary for shorter injection cycles while ensuring the mold remains stable under repeated thermal stress.
Thermal Conductivity: High-end alloys feature rates of approximately 160 W/m·K, significantly outpacing tool steel for cooling efficiency.
Hardness & Finish: Hardness levels of 150–170 HB allow for Class-A surface polishing, making these molds suitable for high-aesthetic consumer electronics.
Dimensional Stability: Specialized 7xxx series plates maintain uniform strength up to 24 inches thick, minimizing distortion during machining and operation.
Regulatory Context: All dimensional and quality expectations are underpinned by ASTM B108/B108M standards for aluminum-alloy permanent mold castings.
From a design perspective, successful implementation requires adhering to specific wall thickness constraints. While a minimum practical wall thickness of 0.18 inches (4.6 mm) is standard, precision-engineered regions can be thinned to 0.125 inches (3.2 mm) if sufficiently supported by the surrounding mold geometry.
Yes, high-strength 7000-series aluminum alloys like QC-10™ or 7075 are excellent for rapid tooling. They are suitable for injection molding roughly 75% of unfilled thermoplastics and can typically produce around 10,000 parts per mold when used with non-abrasive resins.
Aluminum molds generally sustain between 5,000 and 100,000 cycles. High-performance 7075 alloys can reach 100,000 to 150,000 cycles, while 6061-grade aluminum typically lasts for 50,000 to 100,000 cycles depending on the resin and complexity.
Aluminum molds are significantly more cost-effective for initial production, typically costing 30% to 50% less than steel. In many cases, the price of an aluminum tool is 1/4 to 1/2 that of a steel equivalent due to faster machining and lower material costs.
Yes. Aluminum can be polished to a mirror finish (SPI A0) with a surface roughness of Ra 0.008–0.016 μm. This is comparable to high-polish steel, though it requires specialized diamond compounds (down to 1 μm) and careful process control due to the material's sensitivity.
The industry standard for fabricating aluminum rapid tooling is 10–15 working days. This efficiency allows for total production lead times—from design approval to finished parts—of only 4–8 weeks.
Yes, they can process engineering plastics for low-to-medium volumes. A primary advantage is thermal conductivity; aluminum molds heat and cool up to 7 times faster than steel, which significantly reduces cycle times for compatible resins.
