Reaction Injection Molding (RIM) is a versatile and efficient manufacturing process used to produce high-quality, durable plastic parts. This article provides an overview of the RIM process, its applications, and the steps we take to ensure quality, including post-processing techniques like polishing and painting. Using the example of a car wheel cover, we will illustrate how RIM delivers exceptional results for automotive components.
Reaction Injection Molding involves mixing two liquid reactants—typically a polyol and an isocyanate—that chemically react and expand within a mold to form a solid plastic part. The process includes several key steps:
Preparation:
Mold Design: The first step involves designing and manufacturing the mold, which is often made from aluminum or steel. The mold design must account for the part's geometry and desired surface finish.
Material Preparation: The polyol and isocyanate are stored in separate tanks and maintained at specific temperatures to ensure proper flow and mixing.
Injection:
The two liquid reactants are injected into a mixing head at high pressure. In the mixing head, they are rapidly combined and then injected into the mold cavity.
Reaction and Curing:
Inside the mold, the reactants undergo a chemical reaction, causing the mixture to expand and fill the mold cavity completely. The mold is kept closed until the material cures and solidifies, forming the final part.
Demolding:
Once the part has cured, the mold is opened, and the finished part is removed. The cycle time for RIM is relatively short, making it suitable for high-volume production.
RIM is widely used in various industries due to its ability to produce lightweight, strong, and complex parts with excellent surface finishes. Some common applications include:
Automotive: Car bumpers, fenders, dashboards, and wheel covers.
Medical Equipment: Housings and panels for medical devices.
Industrial: Enclosures and components for machinery and equipment.
Consumer Goods: Furniture, appliances, and recreational products.
At our facility, we implement stringent quality control measures throughout the RIM process to ensure that each part meets the highest standards:
Material Quality:
We source high-quality polyols and isocyanates from reputable suppliers. Consistent material quality is essential for achieving reliable and repeatable results.
Process Control:
Our advanced RIM machinery is equipped with precise control systems that monitor and adjust the injection parameters, such as temperature, pressure, and mixing ratio, in real-time.
Mold Maintenance:
Regular maintenance and inspection of molds ensure that they remain in optimal condition, preventing defects and prolonging their lifespan.
Inspection and Testing:
After demolding, each part undergoes thorough inspection and testing to verify its dimensions, surface quality, and mechanical properties. Non-destructive testing methods are also used to detect any internal defects.
To achieve a high-quality finish, we perform post-processing steps, including polishing and painting, on the RIM parts.
Polishing:
Surface Preparation: The parts are carefully cleaned to remove any mold release agents or surface contaminants.
Polishing Techniques: Depending on the desired finish, we use various polishing techniques, such as hand buffing, automated polishing, and abrasive blasting, to achieve a smooth and glossy surface.
Painting:
Primer Application: A primer is applied to the polished surface to enhance paint adhesion and provide a uniform base.
Painting Process: Using advanced painting techniques, such as spray painting or electrostatic painting, we apply the final coat of paint. We offer a wide range of colors and finishes to match the aesthetic requirements of our clients.
Curing: The painted parts are cured in an oven to ensure that the paint adheres properly and provides a durable finish.

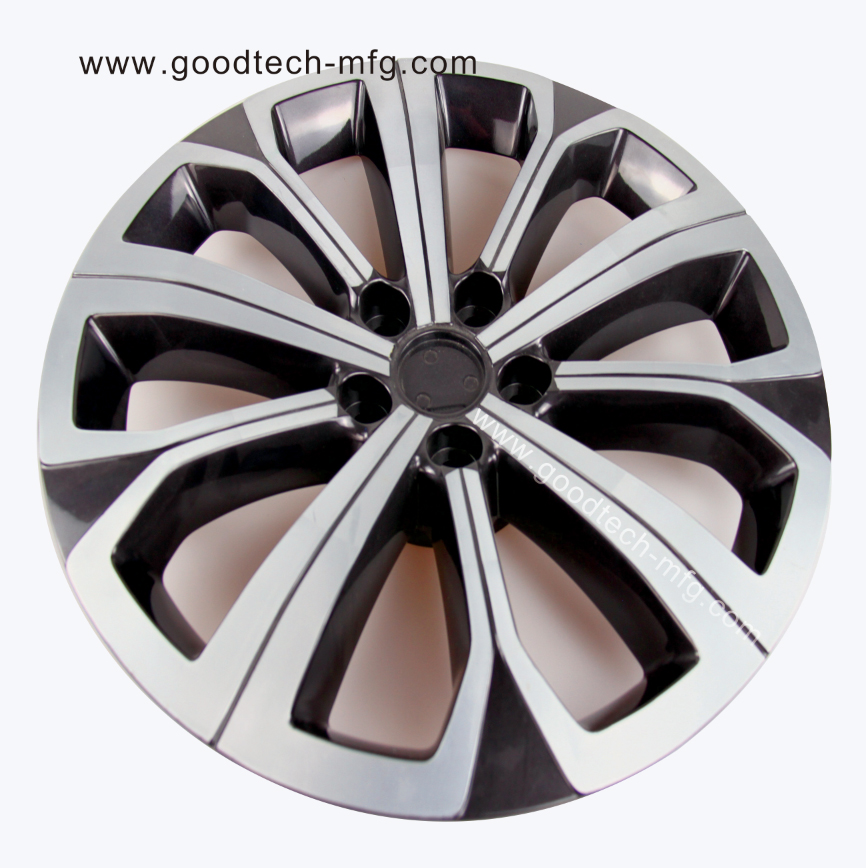

To illustrate the RIM process, let's consider the example of a car wheel cover:
Design and Mold Preparation: The wheel cover design is created using CAD software, and a precise mold is manufactured. The mold design includes features such as the wheel cover's intricate patterns and mounting points.
Injection and Curing: The polyol and isocyanate are mixed and injected into the mold. The chemical reaction occurs, filling the mold cavity and forming the wheel cover. After curing, the wheel cover is demolded.
Post-Processing: The wheel cover is polished to achieve a smooth surface. A primer is applied, followed by the final paint coat. The painted wheel cover is then cured to ensure a durable and high-quality finish.
Inspection: The finished wheel cover undergoes rigorous inspection to verify its dimensions, surface quality, and durability.
