CNC Machining: Precision and Versatility in Prototype Building
CNC (Computer Numerical Control) machining is a cutting-edge manufacturing process that uses automated, programmable tools to create precise and complex parts from various materials, including metals, plastics, and composites. It is widely used in prototype building, offering unparalleled accuracy and flexibility. This article will delve into the role of CNC machining in prototype development, particularly focusing on the intricacies of machining a complex aluminum part with six sides. We will discuss the challenges involved and the strategies we employ to overcome them.
The Role of CNC Machining in Prototype Building
Prototyping is a crucial phase in the product development process, allowing designers and engineers to test and refine their ideas before committing to full-scale production. CNC machining plays a vital role in this stage for several reasons:
Precision and Accuracy: CNC machines can produce parts with tight tolerances and intricate details, ensuring that prototypes are as close to the final design as possible.
Flexibility: CNC machining can handle a wide range of materials and complex geometries, making it ideal for creating prototypes with diverse requirements.
Speed: The automated nature of CNC machining allows for rapid production of prototypes, reducing lead times and accelerating the development process.
Iterative Testing: CNC machining enables quick modifications and iterations, allowing designers to test and refine their prototypes efficiently.

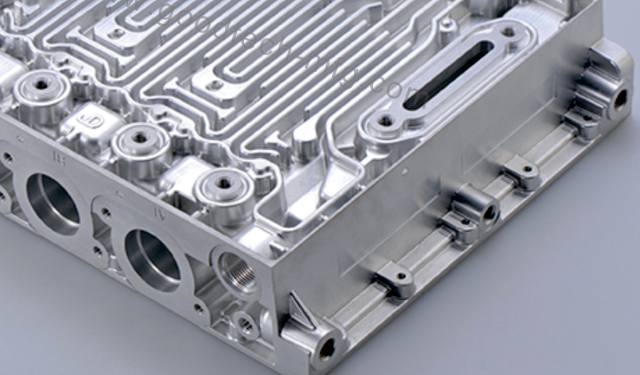

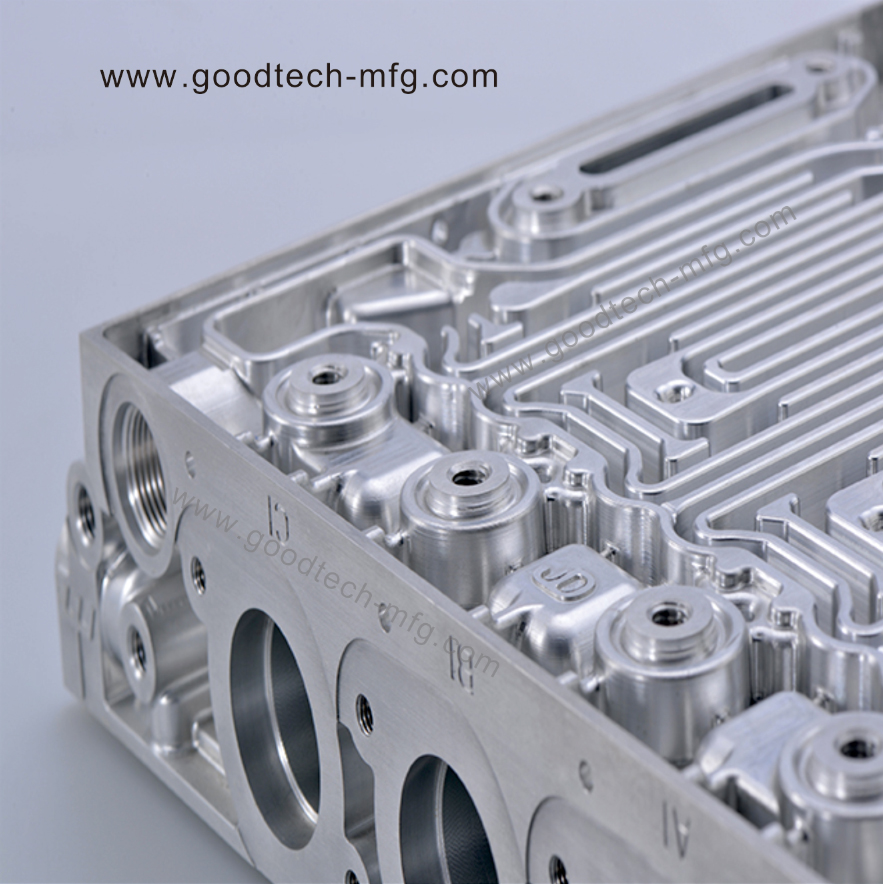

CNC Machining a Complex Aluminum Part: Six Sides Machining
Machining a complex aluminum part with features on all six sides is a challenging task that requires careful planning and execution. Here's an overview of the process:
1. Design and Programming:
The process begins with creating a detailed CAD (Computer-Aided Design) model of the part. This model includes all the features and dimensions of the part.
The CAD model is then converted into a CNC program using CAM (Computer-Aided Manufacturing) software. This program generates the tool paths and machine instructions needed to produce the part.
2. Material Setup:
A solid block of aluminum is selected and secured onto the CNC machine's worktable. Proper fixturing is essential to ensure the material remains stable during machining.

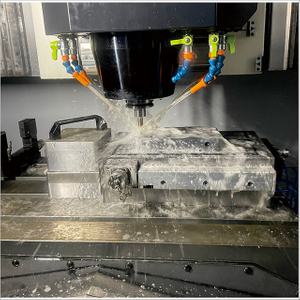

3. Machining the First Side:
The CNC machine performs the initial operations on the first side of the part. This step includes roughing and finishing cuts to create the required features.
4. Repositioning and Fixturing:
After completing the first side, the part is repositioned and re-fixtured to expose the next side for machining. This step is repeated for each of the six sides.
5. Multi-Axis Machining:
Complex parts often require multi-axis machining to reach all the features. A 5-axis CNC machine, capable of moving the part or the tool along multiple axes simultaneously, is typically used for such tasks.
6. Final Inspection and Finishing:
Once all sides are machined, the part undergoes a thorough inspection to ensure it meets the specified tolerances and quality standards. Any necessary finishing operations, such as deburring or polishing, are also performed.
Challenges and Solutions in CNC Machining Complex Parts
Machining a complex part with features on all six sides presents several challenges:
1. Accurate Fixturing and Repositioning:
Challenge: Maintaining the part's positional accuracy during re-fixturing can be difficult, leading to misalignments and dimensional errors.
Solution: We use precision fixturing systems and alignment tools to ensure that the part is correctly positioned for each operation. Automated fixturing and rotary tables can also enhance accuracy.
2. Tool Access and Clearance:
Challenge: Accessing and machining features on all six sides can be tricky, especially in tight spaces.
Solution: Multi-axis CNC machines and specially designed cutting tools are used to reach challenging areas. Tool path optimization in CAM software helps in planning efficient machining strategies.
3. Heat Management:
Challenge: Machining aluminum generates heat, which can affect dimensional accuracy and surface finish.
Solution: We use advanced coolant systems and optimized cutting parameters to manage heat buildup. High-speed machining techniques also help in reducing heat generation.
4. Maintaining Tolerances:
Challenge: Achieving tight tolerances on all six sides of a complex part is demanding.
Solution: Our CNC machines are calibrated regularly to maintain precision. We also employ real-time monitoring and adaptive control systems to adjust machining parameters on the fly.
