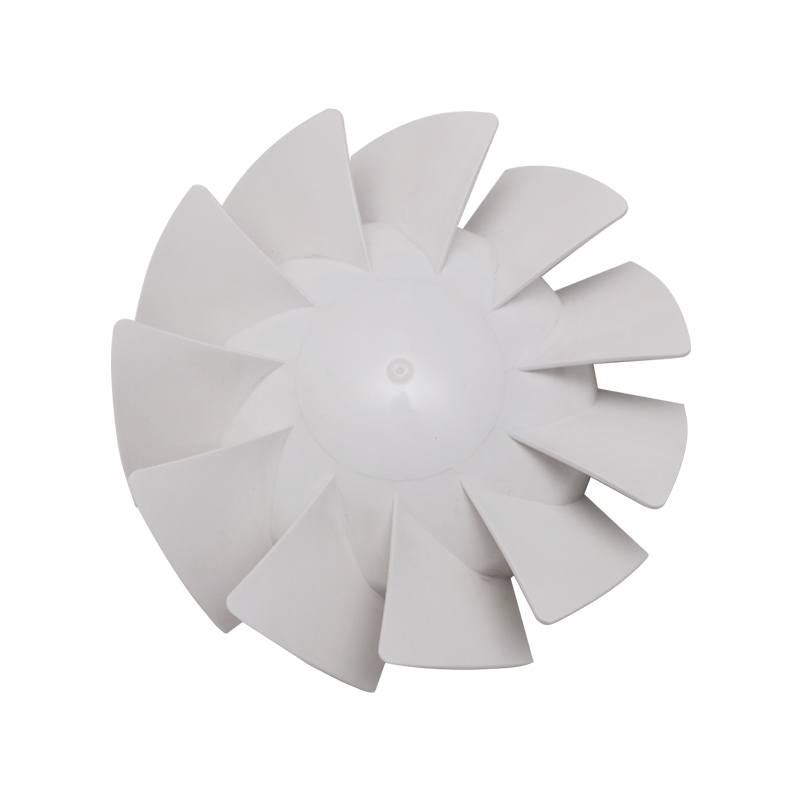

Fan for Vacuum Cleaner

Application: Fan (Vacuum Cleaner)
Size: D95X30mm
Material: ABS (Chimei 757)
Machine Tonnage: 220T
Runner: Hot Runner, Pin Gate
Process: 11 separate side actions (Circular), High Dynamic Balance
sharethis sharing button

下载 (8)

Dynamic Balance Challenge - Molding a Fan for Vacuum Cleaners

The Significance of Dynamic Balance

The role of dynamic balance in molding a fan for vacuum cleaners cannot be overstated. These seemingly simple components, integral to the functionality of vacuum cleaners, must maintain precise balance while spinning at high speeds. Achieving dynamic balance ensures efficient operation, reduces noise, minimizes wear and tear, and ultimately enhances the longevity and performance of the vacuum cleaner.

The Challenge of Molding the Fan

Though fans for vacuum cleaners may appear straightforward, molding them presents a considerable challenge. These parts demand meticulous attention to detail due to their unique geometry and the critical importance of maintaining their balance. The thin, intricate fins of the fan, designed for efficient airflow, require precision molding to prevent warping, defects, and imbalance issues.

Building the Complex Mold with 11 Separate Side Actions

Crafting the intricate fins of the vacuum cleaner fan necessitates a complex mold, featuring 11 separate side actions. This intricate mold design is crucial for achieving the fine details of the fan's structure. Each side action plays a role in molding the intricate geometry of the fan's fins, ensuring precision and consistency in every part produced.

Key Considerations in Molding

When embarking on the molding process for vacuum cleaner fans, several critical considerations come to the forefront:

Material Selection: Choosing the right material is paramount to ensure the fan's durability, stability, and balance.

Mold Design Expertise: A well-crafted mold with specialized side actions is essential for achieving the fan's intricate design.

Precision Molding: Careful control of injection speed, pressure, and temperature is crucial to prevent defects and ensure dynamic balance.

Quality Assurance: Rigorous inspection and testing throughout the molding process help catch any defects early and guarantee product quality.

Post-Processing: Additional processes such as trimming, assembly, and quality checks may be necessary to meet the final product's specifications.

Molding a fan for vacuum cleaners may pose its challenges, but with expertise, precision, and meticulous attention to detail in both mold design and molding processes, these challenges can be overcome. The result is a finely balanced, high-performance fan that enhances the efficiency and longevity of vacuum cleaners, benefiting both manufacturers and users alike.
