What is Geometric Dimensioning and Tolerancing?

Views: 1024     Author: Goodtech     Publish Time: 2023-09-14      Origin: Site

Geometric Dimensioning and Tolerancing (GD&T) is a symbolic language used in engineering and manufacturing to communicate and control the dimensions and tolerances of geometric features on a part or product. It ensures that the parts are manufactured and assembled with precision, leading to better interchangeability, functionality, and quality.


The GD&T system uses a set of symbols, rules, and definitions to specify the allowable variation in form, size, orientation, and location of features on a part. It provides a more comprehensive and precise way of expressing design requirements compared to traditional linear dimensioning.


The basic components of GD&T include:


Geometric Features: These are specific shapes or elements on a part, such as lines, circles, cylinders, and surfaces.

Tolerances: GD&T defines allowable variations or tolerances for each geometric feature. Tolerances can be expressed in various ways, such as ±0.1 mm, or using more specific symbols and modifiers.

Datum: A datum is a theoretically perfect feature used as a reference for establishing the location and orientation of other features.

Symbolic Language: GD&T uses specific symbols, letters, and numbers to represent geometric control information. Some common symbols include position, concentricity, flatness, parallelism, perpendicularity, etc.

tolerance

geometry tolerance


Let's take a sample to learn it better -


tolerance

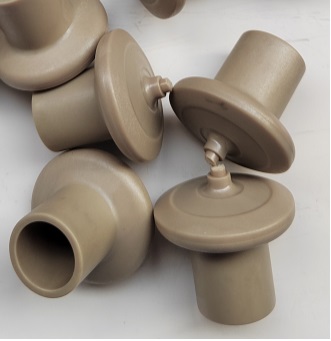

tolerance - PEEK park

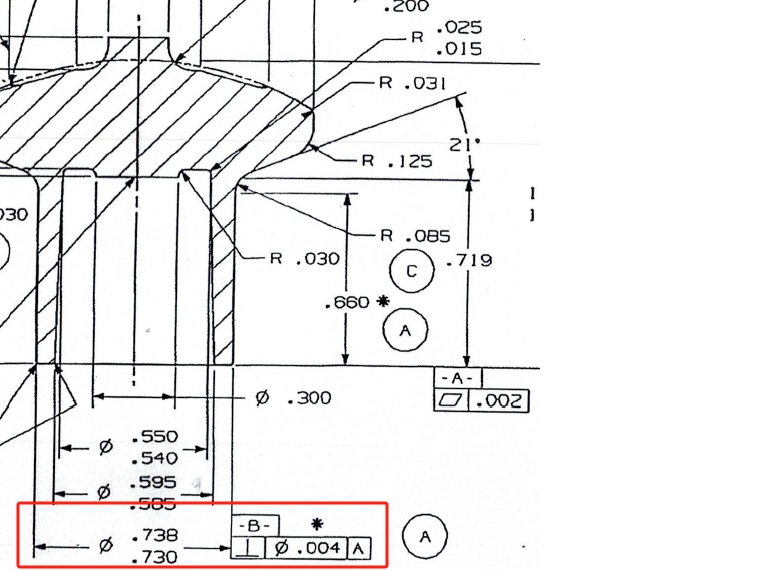

The dimension Ø .730/.738 with a perpendicularity tolerance of .004 means that this cylindrical feature must remain within 0.004 inches of perfect perpendicularity relative to the specified datum (A).

Understanding Perpendicularity Tolerance:

  • Perpendicularity controls how much a feature (such as a cylindrical surface or hole) can deviate from being perfectly 90° relative to a reference surface (datum A).

  • The Ø symbol in the perpendicularity tolerance (Ø .004 A) means that this is a cylindrical tolerance zone with a diameter of 0.004 inches.

  • This means that the axis of the measured feature (Ø .730/.738) must stay within an imaginary cylinder of .004 inches diameter, perfectly aligned perpendicular to datum A.

How to Measure Perpendicularity:

  1. Setup:

    • Secure the part on a surface plate with datum A firmly referenced.

    • Ensure the datum surface is flat and stable, using a precision fixture if necessary.

  2. Using a CMM (Coordinate Measuring Machine):

    • Measure several points along the cylindrical feature (Ø .730/.738).

    • The CMM will calculate the axis of the measured cylinder and compare it to a theoretical perfect perpendicular axis.

    • If the axis deviates more than .004 inches within the tolerance zone, the part is out of spec.

  3. Using a Dial Indicator and Height Gauge:

    • Place a dial indicator against the cylindrical surface.

    • Rotate the part slowly while keeping the indicator fixed.

    • Any wobble or deviation beyond .004 inches indicates an out-of-tolerance condition.

  4. Using a V-Block and Indicator:

    • Place the cylindrical feature in a V-block, ensuring datum A is flat on the surface plate.

    • Use a height gauge with an indicator to check for perpendicular deviation.

Pass/Fail Criteria:

  • If the cylinder's axis remains within the .004-inch cylindrical tolerance zone, it passes.

  • If the deviation exceeds .004 inches, the part fails.
