Building a Complex Plastic Injection Mold for a High-Precision Fan

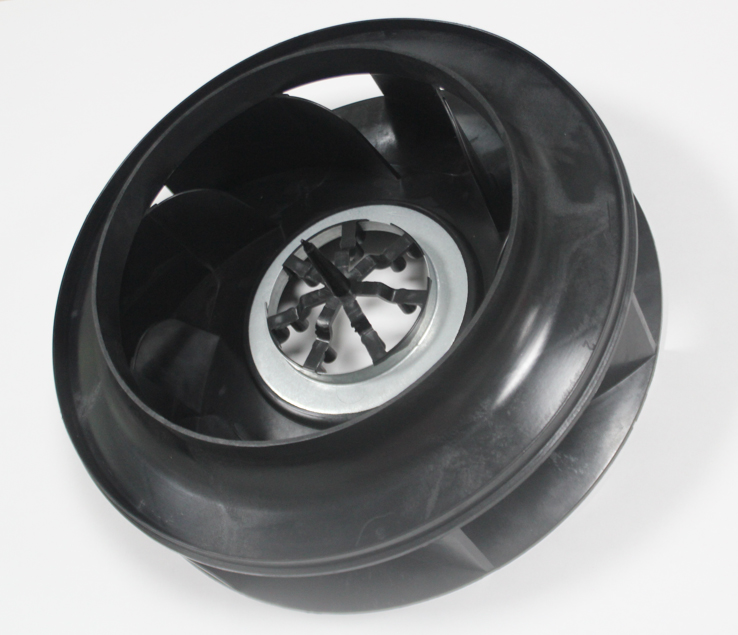

Plastic injection molding is a critical process in manufacturing complex components with intricate geometries and high precision. One such challenging project is the creation of a plastic injection mold for a fan that requires seven cylinders to pull in seven different directions to form its supporting features.
The Complexity of the Mold Design
Creating a mold for a fan with such detailed requirements involves several critical steps, each with its unique challenges:
1. Multi-Directional Cylinders:
The mold design necessitates seven side actions (cylinders) that must pull in seven distinct directions to form the supporting features of the fan. Each cylinder's movement is crucial to the final part's structural integrity and functionality.
2. High Dynamic Balance:
The fan requires excellent dynamic balance to function effectively, especially at high speeds. This means the mold must produce parts with precise dimensional accuracy, ensuring uniform weight distribution and symmetry.
3. Smooth Movement of Side Actions:
The side actions must move smoothly when the mold opens and closes. Any friction or misalignment could lead to defects, increased wear on the mold components, or even mold failure.
Challenges in Building the Mold
The complexities of this mold present several significant challenges:
1. Dimensional Accuracy:
Ensuring that the seven side actions meet precisely at the center with tight tolerances is challenging. Any deviation can result in a misfit, leading to functional issues in the final product.
2. Synchronization of Movements:
The seven cylinders must operate in perfect synchronization. Asynchronous movement can cause part defects or incomplete features, affecting the fan's performance and aesthetic quality.
3. Material and Wear:
The repeated movement of side actions can cause significant wear on the mold components. Choosing the right materials for the mold and ensuring their durability is crucial to the mold's longevity and the quality of the parts produced.
4. Heat Management:
The injection molding process generates substantial heat. Proper cooling channels must be designed to ensure uniform cooling of the mold, preventing warping or deformation of the fan parts.
Solutions to Overcome the Challenges
To address these challenges, several innovative solutions are implemented:
1. Precision Engineering and Machining:

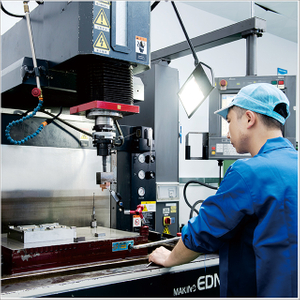

Advanced CNC machining and precision engineering techniques are used to create the mold components with tight tolerances. High-precision measurement tools and computer-aided design (CAD) software ensure that all dimensions are accurate and consistent.
2. Synchronizing Cylinder Movements:
The use of sophisticated mold design software allows for detailed simulations of the mold's operation, ensuring that the seven cylinders move in perfect synchronization. Hydraulic or pneumatic systems are often employed to control the movement of the side actions with high precision.
3. High-Quality Materials:
The mold components are made from high-quality, wear-resistant materials such as hardened steel. This choice of material extends the mold's life and maintains the precision of the side actions over many production cycles.
4. Advanced Cooling Systems:
An efficient cooling system is designed within the mold to manage the heat generated during the injection process. Conformal cooling channels, which closely follow the geometry of the mold, are used to ensure even and rapid cooling, reducing the risk of part deformation.
5. Regular Maintenance and Testing:
Regular maintenance and testing of the mold are crucial to ensure that all components function smoothly and maintain their precision. Lubrication of moving parts and periodic inspection for wear and tear help in sustaining the mold's performance.
