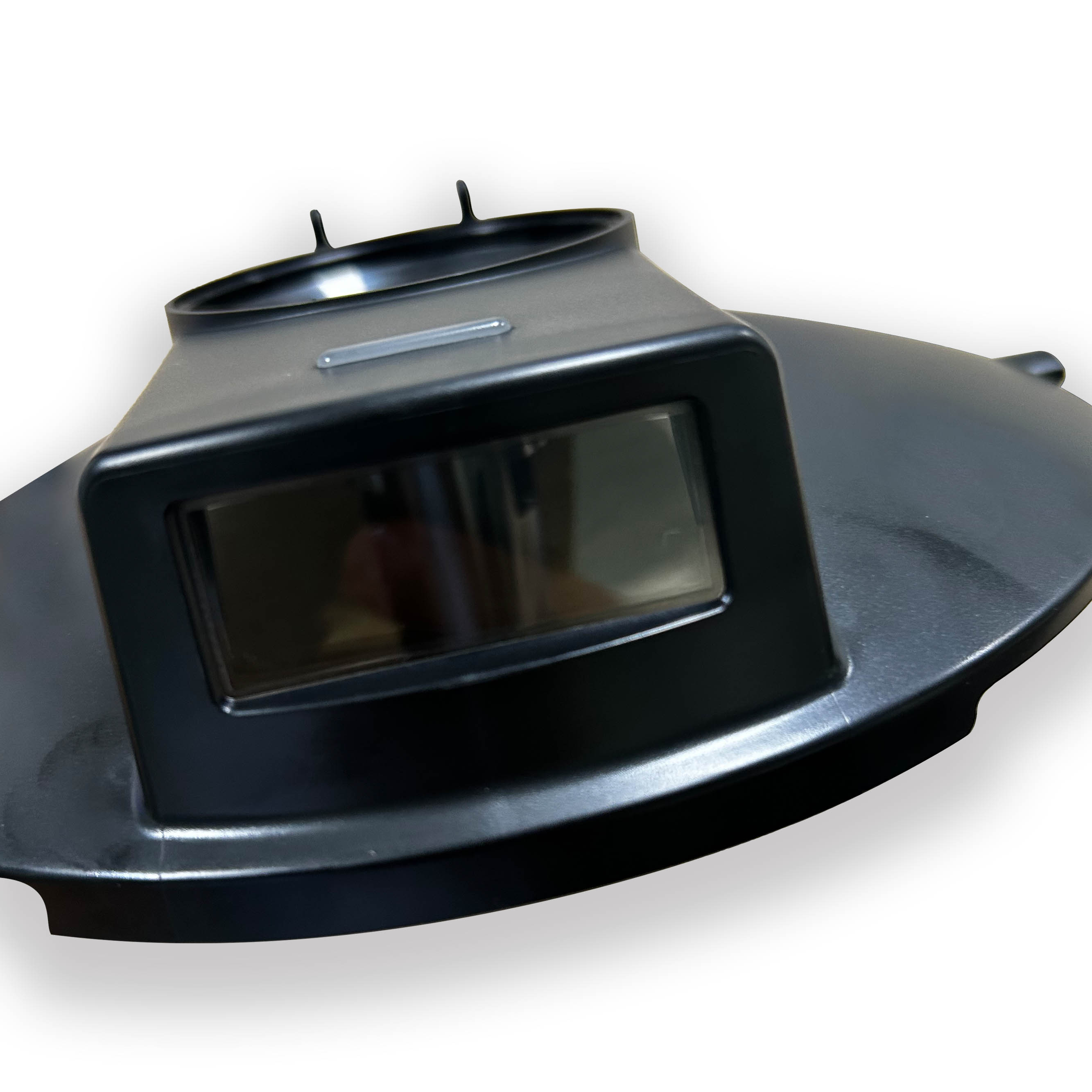

This component is designed using food-grade polypropylene (PP) material with an insert-molded clear polycarbonate (PC) window. The project posed several challenges, particularly in the insert molding process and ensuring the materials met stringent food safety standards.
1. Challenges of Insert Molding PC Window into a PP Cover and Our Solutions
Challenges: Insert molding a clear PC window into a PP cover presents several technical challenges due to the differences in material properties. Polypropylene and polycarbonate have different melting temperatures, shrink rates, and bonding characteristics, making the process complex. Additionally, ensuring a seamless, watertight bond between the PP and PC materials is critical, especially for a product intended to hold hot liquids like coffee.
Solutions:
Precise Temperature Control: To address the challenge of different melting points, we used precise temperature control during the molding process. This ensured that the PP material fully encapsulated the PC insert without causing warping or degradation of the window.
Specialized Tooling: We designed custom tooling with specific attention to the placement and flow of materials. This helped in achieving uniform pressure and material flow, ensuring a strong and consistent bond between the PP and PC components.
Advanced Bonding Techniques: To enhance adhesion between the PP cover and the PC window, we applied advanced surface treatment methods, plasma treatment, to the PC insert. This improved the surface energy, allowing for better bonding with the PP material.
Tight Tolerances: We maintained extremely tight tolerances in the mold design and manufacturing process to ensure that the PP and PC components fit together perfectly, resulting in a smooth, aesthetically pleasing finish.
2. Importance of Using Food-Grade Materials and Ensuring Material Traceability
Importance of Food-Grade Materials: In products like a coffee server top cover, using food-grade materials is non-negotiable. Polypropylene and polycarbonate must be free from harmful chemicals, ensuring safety when in contact with food or beverages. Additionally, the use of virgin materials, without any regrind or recycled content, is crucial to maintain the integrity and safety of the product.
Ensuring Material Traceability: To guarantee the safety and quality of our product, we implemented a rigorous material traceability system. Here’s how we manage it:
Material Sourcing: We sourced food-grade PP and PC materials from certified suppliers, ensuring they meet all relevant food safety regulations.
Batch Tracking: Every batch of raw material is assigned a unique identification number, which is logged and tracked throughout the production process. This ensures that each component can be traced back to its source, providing full transparency.
Controlled Environment: During manufacturing, we maintained strict controls to prevent contamination or mixing of different material batches. This includes separate storage areas for food-grade materials and dedicated equipment for handling.
Documentation: Detailed records were kept for each production run, documenting the material batches used, processing parameters, and inspection results. This ensures that in the event of any issue, we can quickly trace and address the root cause.
When manufacturing a top cover for a coffee server, especially one that includes insert molding and is intended for food contact, several additional factors are important to consider:
1. Dimensional Stability and Warping Prevention:
Importance: The cover must maintain its shape and fit perfectly onto the coffee server to prevent leaks or spillage.
Approach: During the design and molding process, we carefully control the cooling rates of both the PP and PC materials. Uneven cooling can lead to warping or deformation, which could compromise the functionality and aesthetics of the cover. Using mold flow analysis software can help predict and minimize warping.
2. Aesthetic Finish and Surface Quality:
Importance: As a visible part of the coffee server, the top cover’s appearance is crucial. Any imperfections, such as sink marks, flow lines, or surface roughness, could affect the product’s marketability.
Approach: To ensure a high-quality surface finish, our mold design included well-placed gates and vents to prevent issues like air trapping or uneven material flow. Additionally, we applied surface texturing to the mold cavities to achieve the desired aesthetic.
3. Fit and Functionality:
Importance: The cover should fit securely and smoothly onto the coffee server, providing an effective seal and easy usability.
Approach: Precision in the mold design is essential to ensure the cover fits well with the other components of the coffee server. Tolerances must be carefully managed to ensure that the cover snaps into place without excessive force while still maintaining a tight seal.
4. Heat Resistance and Durability:
Importance: The cover will be exposed to hot liquids and potentially steam, so it needs to withstand high temperatures without degrading or warping.
Approach: Our selection of PP and PC materials considered their heat resistance properties. Additionally, our molding process ensures that the material’s molecular structure is optimized for thermal stability.
5. Ease of Cleaning and Maintenance:
Importance: Since this is a food-contact item, it must be easy to clean without trapping residues o bacteria.
Approach: The design avoided sharp corners, undercuts, or deep recesses that could trap food particles or moisture. The materials used is also resistant to common cleaning agents and detergents.
