The Society of the Plastics Industry, Inc. (SPI) plays a vital role in establishing industry standards for plastic manufacturing processes, ensuring uniformity and quality across the board. One of its notable contributions is the SPI mold classification system, which categorizes plastic injection molds based on their intended use, precision, and tool life expectancy. In this article, we will delve into the five SPI mold classifications, explore the factors impacting tool life, and provide insights into maintaining molds for extended longevity.

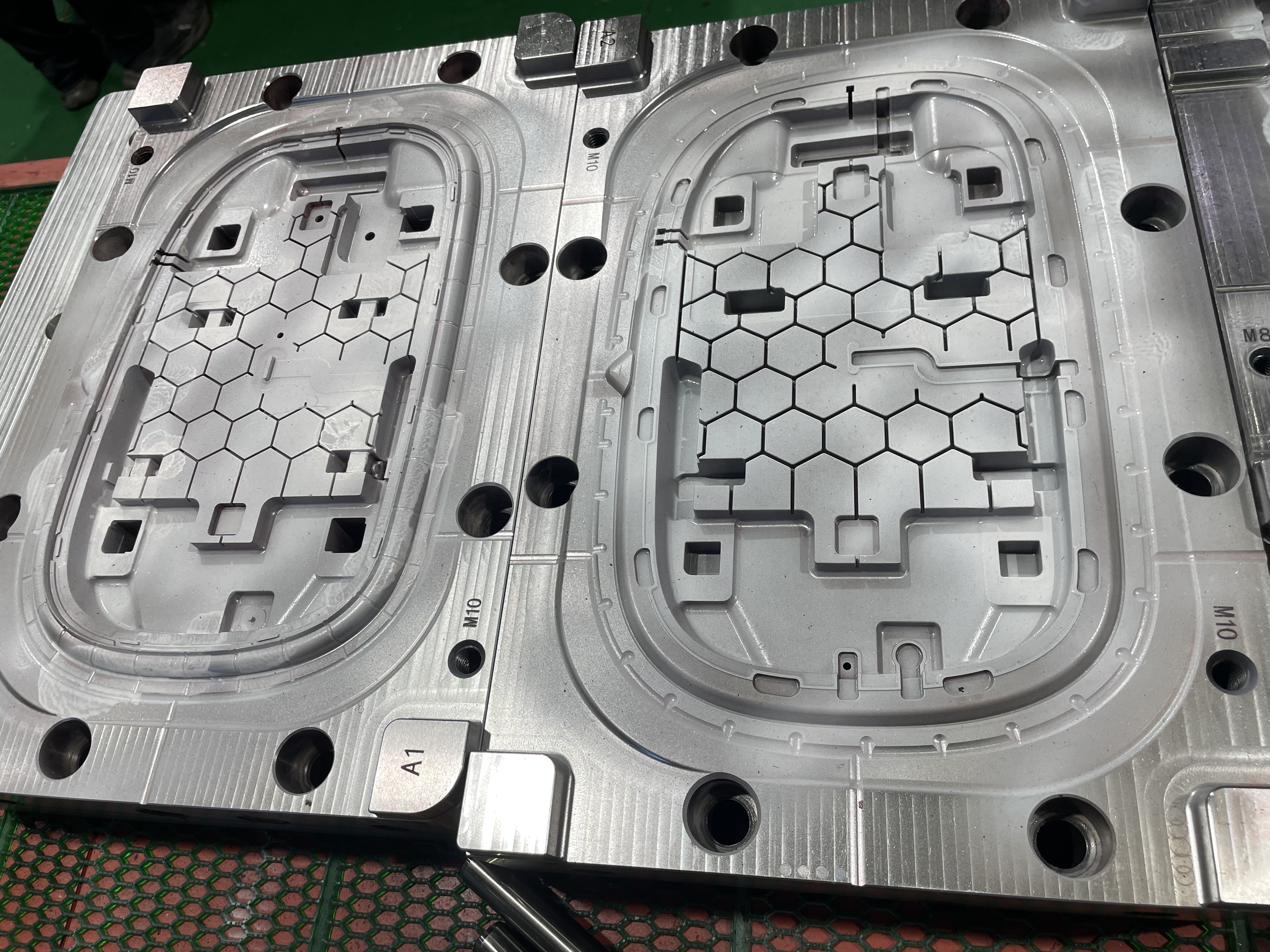

SPI has devised a classification system that allows manufacturers and customers to specify the exact requirements for their injection molds. These classifications help determine the mold's durability, precision, and suitability for the intended production volume. Let's explore the five SPI mold classifications in detail:
Description: Class 101 molds are designed for high production volumes, typically exceeding one million cycles.
Precision: They offer the highest level of precision and consistency.
Tool Life: Class 101 molds are built to withstand the rigors of continuous production, ensuring an extended tool life.
Use Cases: These molds are ideal for products with demanding quality standards, such as medical devices, consumer electronics, and automotive components.
Description: Class 102 molds are suitable for medium to high production volumes, ranging from 500,000 to one million cycles.
Precision: They provide a high level of precision, making them suitable for many applications.
Tool Life: Class 102 molds offer a good balance between tool life and cost-effectiveness, meeting the needs of various industries.
Use Cases: Class 102 molds find application in consumer goods, packaging, and components where quality and consistency are essential.
Description: Class 103 molds are designed for low to medium production volumes, with a tool life of at least 100,000 cycles.
Precision: They offer acceptable precision for products with less stringent quality requirements.
Tool Life: Class 103 molds are cost-effective options for projects with smaller production runs.
Use Cases: These molds are suitable for short-run production, prototyping, and products with lower quality demands.
Description: Class 104 molds are categorized as prototype or experimental molds.
Precision: They provide minimal precision and are primarily used for concept testing and initial design validation.
Tool Life: Class 104 molds are not intended for production but for evaluating part design and functionality.
Use Cases: These molds are used for early-stage product development and testing purposes.
Description: Class 105 molds are considered production prototypes.
Precision: They offer a moderate level of precision, suitable for limited production runs.
Tool Life: Class 105 molds are not designed for long-term production but are more robust than Class 104 molds.
Use Cases: These molds are used when transitioning from prototype to initial production or for limited-market releases.
Several factors influence the tool life of injection molds, regardless of their SPI classification. Key elements to consider include:
Material Selection: The choice of mold material, such as high-quality tool steel, impacts tool life significantly.
Design Precision: Accurate mold design and machining ensure consistent part quality and extend tool life.
Operating Conditions: Proper mold maintenance, temperature control, and pressure settings contribute to tool longevity.
Production Volume: The mold's SPI classification should align with the expected production volume to optimize tool life.
Material Characteristics: The type of plastic being used can affect tool wear and lifespan.
To ensure extended mold life, consider the following best practices:
Regular Cleaning: Clean the mold between production runs to prevent buildup and reduce wear.
Proper Lubrication: Lubricate moving parts to minimize friction and prolong tool life.
Routine Inspection: Regularly inspect the mold for signs of wear, damage, or corrosion.
Corrective Actions: Address any issues promptly to prevent further damage and maintain mold performance.
Temperature Control: Maintain consistent temperature control during production to reduce thermal stress on the mold.
Expert Maintenance: Engage skilled technicians to perform routine maintenance and repairs.
Selecting the correct SPI mold classification depends on key factors such as production volume, material type, tooling budget, and expected mold lifespan. Here’s how to determine which SPI class suits your project:
Production Volume
High-volume production (Over 1 million cycles) → Class 101 or 102
Medium-volume (Up to 500,000 cycles) → Class 103
Low-volume or prototype (Under 100,000 cycles) → Class 104 or 105
Material Type
Highly abrasive resins (e.g., glass-filled, engineered plastics) → Requires hardened steel, making Class 101 or 102 the best choice.
Standard thermoplastics (PP, ABS, PE, etc.) → Class 103 or 104 can suffice.
Mold Longevity & Durability
Long-term, continuous production? Class 101 is ideal.
Occasional production runs? Class 103 or 104 can work.
Short-term prototyping or temporary use? Class 105 is the most economical choice.
Tooling Budget
Higher-class molds (101, 102) require premium materials, hardened steel, and precision machining, making them significantly more expensive.
Lower-class molds (104, 105) are more affordable but have limited lifespan and lower precision.
The rough cost differentials between SPI mold classifications can vary based on design complexity, materials, and tooling precision. Here’s a general idea:
| SPI Class | Mold Lifespan | Typical Cost Range ($) | Cost Factor (Relative to Class 101) |
|---|---|---|---|
| Class 101 | 1M+ cycles | $50,000 - $200,000+ | Baseline (100%) |
| Class 102 | 500K - 1M cycles | $30,000 - $100,000 | ~70-80% of Class 101 |
| Class 103 | ~500K cycles | $15,000 - $50,000 | ~40-60% of Class 101 |
| Class 104 | <100K cycles | $5,000 - $20,000 | ~20-30% of Class 101 |
| Class 105 | <500 cycles (prototype) | $1,000 - $5,000 | ~10% of Class 101 |
Key Takeaways:
Class 101 & 102 → Best for long-term, high-volume production but most expensive.
Class 103 → A cost-effective choice for medium-volume runs.
Class 104 & 105 → Ideal for short-term use or prototyping but limited durability.
