What’s injection molding?

Views: 7     Author: Site Editor     Publish Time: 2023-02-23      Origin: Site

Injection molding is a manufacturing process used to produce a large volume of identical parts. Molten plastic material is injected under high pressure into a mold, which is then cooled and opened to release the solidified part. Injection molding is widely used to produce parts for various industries, including automotive, medical, consumer products, and more.

Goodtech molding company provides high quality molds and molding service. Contact us for a quote now.

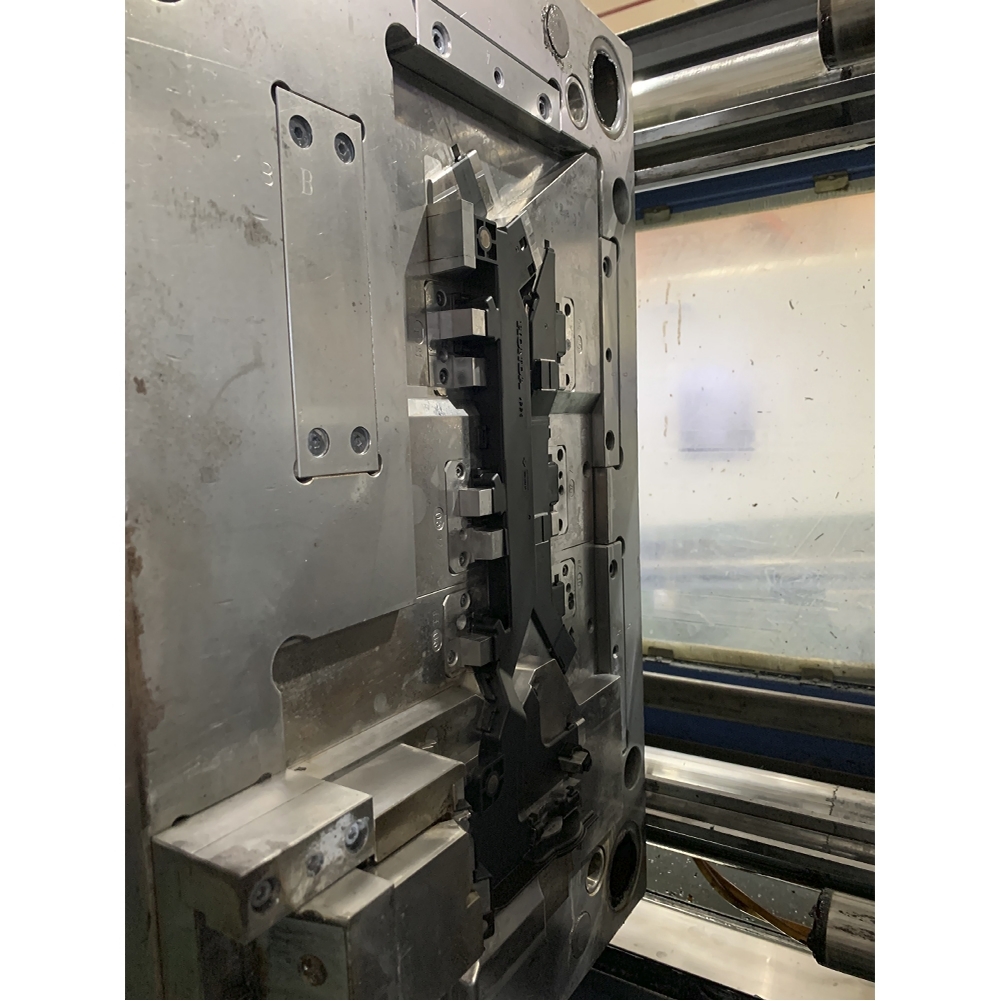

 injection molding


The history of injection molding

The history of injection molding dates back to the late 19th century, when John Wesley Hyatt developed the first injection molding machine in 1872 to produce celluloid billiard balls. Over the next few decades, improvements were made to the machine and the process, allowing for the production of a wider range of products.


In the 1930s, thermoplastics were introduced, which led to further advancements in injection molding technology. During World War II, injection molding was used to produce military parts and other products. After the war, the use of injection molding expanded to a wide range of consumer and industrial products.


In the following decades, advancements in computer technology, materials science, and manufacturing processes continued to improve injection molding, making it a highly efficient and versatile manufacturing method that is still widely used today.


The advantages of injection molding

1. High production efficiency and repeatability: Injection molding is a highly efficient process that can produce large quantities of identical parts quickly and consistently. Once the mold is set up, the process is fully automated, reducing the need for manual labor and ensuring consistent quality and output.

injection molding-1


2. Ability to produce complex shapes and intricate details: Injection molding allows for the production of parts with intricate geometries and complex shapes that would be difficult or impossible to achieve with other manufacturing methods. The process can produce features such as threads, undercuts, and thin walls with high precision and accuracy.


3. Minimal material waste due to the ability to reuse scrap material: Injection molding can reuse scrap material, reducing waste and lowering material costs. Any scrap material generated during the process can be collected, ground up, and melted down to be used again in future production runs.


4. Consistent and uniform part quality: Injection molding produces parts with consistent and uniform quality, with tight tolerances and precise dimensions. This makes it an ideal process for applications where parts need to fit together with other components or where tight tolerances are required.


5. Ability to use a wide range of materials, including both thermoplastics and thermosetting polymers: Injection molding can use a wide range of materials, including thermoplastics, thermosetting polymers, and elastomers. The process can produce parts with a range of properties, including strength, flexibility, heat resistance, and chemical resistance.


6. Automation is possible for high volume production: Injection molding is a highly automated process that can be run continuously for long periods, making it ideal for high volume production runs.


7. Low labor costs: The automation of the injection molding process reduces the need for manual labor, which can result in lower labor costs and improved efficiency.


8. Low unit costs for high volume production: Injection molding has low unit costs for high volume production runs, making it an attractive option for producing large quantities of parts.


8. Suitable for large-scale production of small to medium-sized parts: Injection molding is ideal for producing small to medium-sized parts in large quantities. The process can produce parts with high precision and accuracy, making it an ideal option for applications where consistent quality is essential.


9. Low maintenance and easy scalability: Injection molding machines are easy to maintain and can be easily scaled up or down to accommodate changing production needs. This makes it an ideal process for manufacturers who need to respond quickly to changes in demand.


The process of injection molding

Injection molding is a widely used manufacturing process for producing plastic parts in high volumes. Here is a more detailed explanation of the injection molding process:


1. Material selection: The first step in injection molding is selecting the appropriate material for the part being produced. The material is usually in the form of small pellets, which are melted down for use in the process. Common materials include thermoplastics like ABS, polycarbonate, and nylon.


2. Injection molding machine setup: The injection molding machine is set up by installing the mold and adjusting the machine settings to achieve the desired temperature, pressure, and cycle time.


3. Injection: Once the machine is set up, the material is loaded into the machine's hopper and fed into a heated barrel. The material is then melted and injected into the mold cavity under high pressure using a screw or plunger.


4. Cooling and solidification: The molten material is then allowed to cool and solidify in the mold cavity. The cooling time is determined by the thickness of the part, the material being used, and the desired cycle time.


5. Mold opening and ejection: Once the part has solidified, the mold is opened and the part is ejected. The ejector pins in the mold push the part out of the cavity and the process can begin again.


6. Finishing: After ejection, the part may require additional finishing processes such as trimming, polishing, plating, or painting before it is ready for use.


Injection molding is a highly efficient process that can produce parts with high precision, consistency, and quality. It is used in a variety of industries, including automotive, consumer goods, electronics, and medical devices.


What materials can be used with injection molding process?

The injection molding process can be used with a wide range of materials, including thermoplastics, thermosetting plastics, and elastomers. Some of the most commonly used materials for injection molding include:

      ▪ Polypropylene (PP)

      ▪ Polyethylene (PE)

      ▪ Polystyrene (PS)

      ▪ Acrylonitrile-butadiene-styrene (ABS)

      ▪ Polycarbonate (PC)

      ▪ Nylon (PA)

      ▪ Polyoxymethylene (POM)

      ▪ Thermoplastic elastomers (TPE)

      ▪ Acetal (POM)


The choice of material depends on the specific properties required for the part being produced, such as strength, flexibility, heat resistance, and chemical resistance. The material is usually in the form of small pellets, which are melted down and injected into a mold under high pressure. The injection molding process is highly versatile, allowing for the production of parts with complex geometries, high precision, and consistency.


What are the key parameters for an injection molding machine?

The key parameters for an injection molding machine include:


1. Injection pressure: This is the pressure at which the molten plastic material is injected into the mold. It is typically measured in pounds per square inch (PSI) and is critical to achieving proper fill of the mold and forming a quality part.


2. Injection speed: This is the rate at which the molten plastic material is injected into the mold. It is usually measured in millimeters per second (mm/s) and is critical to controlling the flow of material into the mold and avoiding defects like flow lines, sink marks, and air traps.


3. Mold temperature: This is the temperature of the mold cavity during the injection molding process. It is critical to achieving proper fill, solidification, and ejection of the part.


4. Clamp tonnage: This is the force applied by the machine to hold the mold closed during the injection molding process. It is critical to preventing flash or warpage of the part and ensuring consistent part quality.


5. Cooling time: This is the time required for the part to solidify and cool inside the mold before it can be ejected. It is critical to achieving consistent part quality and cycle time.


6. Back pressure: This is the pressure exerted on the injection screw during the plasticizing phase of the process. It is critical to controlling melt quality and preventing bubbles or other defects in the part.


7. Screw speed: This is the speed at which the screw rotates in the injection molding machine during the plasticizing phase of the process. It is critical to controlling the melt temperature and ensuring consistent part quality.


Overall, these parameters are essential to controlling the injection molding process and producing parts of consistent quality and performance. The optimal settings for each parameter may vary depending on the material being used, the design of the part, and other factors, and may require careful adjustment and monitoring during the manufacturing process.


How important are the molds for injection molding?

The mold is a critical component of the injection molding process, as it determines the final shape, quality, and consistency of the part being produced. Here are some reasons why molds are important for injection molding:


1. Shape and size: The mold defines the shape and size of the part being produced. It must be designed to exact specifications and tolerances to ensure that the part meets the required dimensions and functionality.


2. Quality and consistency: The mold is responsible for producing parts with consistent quality and characteristics. Any flaws, defects, or variations in the mold can lead to parts that do not meet the required standards, leading to waste, rework, or defects in the final product.


3. Cycle time and efficiency: The design of the mold can have a significant impact on the production cycle time and efficiency of the injection molding process. The mold should be designed to minimize cycle times and reduce the need for secondary operations or post-processing.


4. Material selection: The mold material must be carefully selected to ensure that it can withstand the high temperatures, pressures, and wear and tear of the injection molding process. The mold material should be durable, heat-resistant, and capable of producing parts with fine detail and complex geometries.


Overall, the quality and performance of the mold are crucial to the success of the injection molding process. The mold must be carefully designed, manufactured, and maintained to ensure the production of high-quality parts that meet the required specifications and standards.
